EXL

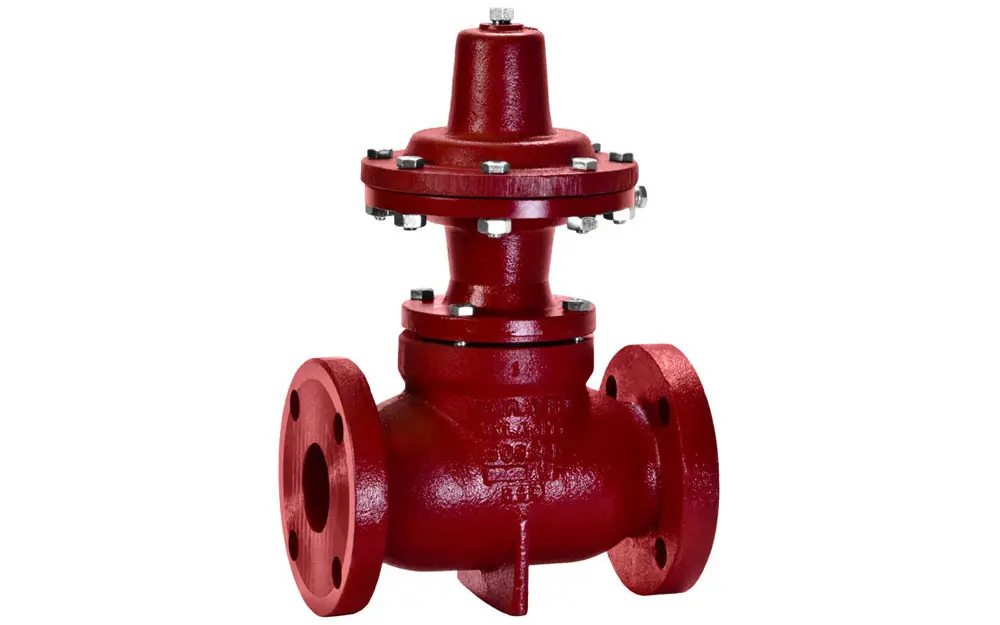

Pneumatic Diaphragm-Balanced Liquid Dump Valves balance upstream vs downstream pressure via communication of the process fluid above and below the balancing diaphragm in order to eliminate imbalance of opening/closing forces due to pressure differential.
Designed for liquid systems, and available in either pressure-opening (normally closed) or pressure-closing (normally open) configurations.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RFM + Add to Quote
Product Applications
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 2 " |
| Connection Type: | 150 RF |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 1.5 " |
| Trim Type: | Linear (Nominal) |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 250 psig |
| Actuator Spring Nominal Pressure: | 25 psig |
| Actuator Crack Open Pressure: | 10 psig |
| Actuator Full Open Pressure: | 25 psig |
| Max Supply Gas Pressure: | 45 psig |
| Fail Position: | Open |
| Operation: | Pneumatic |
| Catalog Page: | 04:10.5 |
| Face-to-Face Length: | 9 " |
| Min Cv: | 8.5 |
| Max Cv: | 23.3 |
| Cf: | 0.79 |
