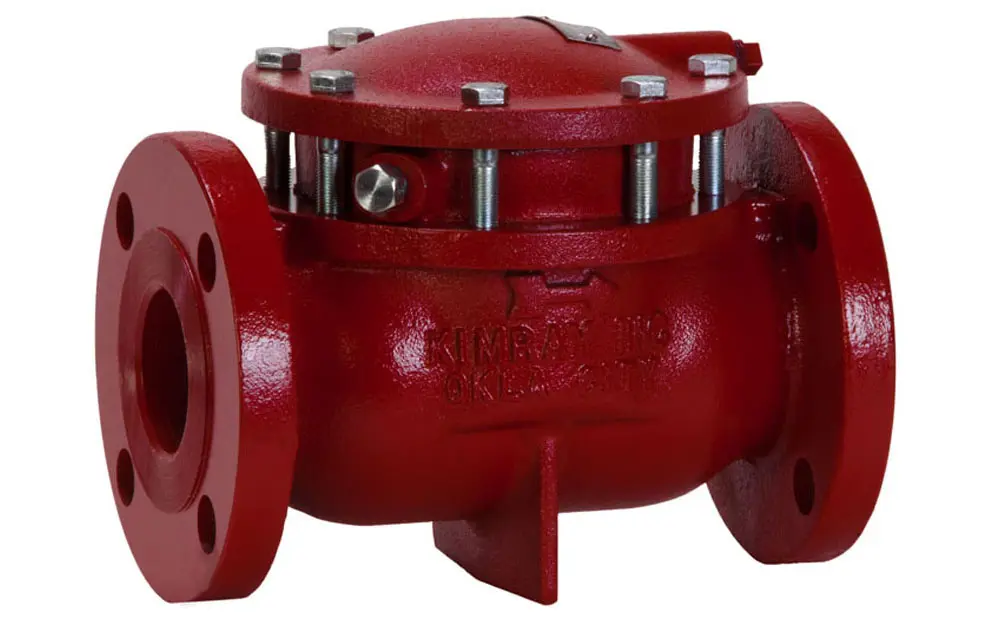

EUC
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 2 " |
| Connection Type: | 150 RF |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 2 " |
| Trim Type: | Modified EP |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 250 psig |
| Operation: | Pneumatic |
| Catalog Page: | 02:10.1 |
| Face-to-Face Length: | 9 " |
| Min Cv: | 6.2 |
| Max Cv: | 47 |
| Cf: | 0.75 |
Product Training
Product Videos
Compatible Kits and Tools
| Type | Product Code | |
|---|---|---|
| Repair Kit: | RDL | + ADD TO QUOTE |
Downloads & Updates
Frequently Asked Questions
Low pressure applications (300 psi and below) where you want the valve to close in response to a pneumatic signal. This valve will have a fail open position.
These products themselves do not vent, but the pneumatic signal used to actuate the valves is vented through the pilot. Due to the design, compressed air is not recommended as the actuation air. This is because if there is a failure of the stem packing, compressed air can be injected into the flow stream. To go emissions free with a pneumatic LPCV, it is recommended to use nitrogen gas a supply gas since it is chemically inert.
- Connection Sizes: 1" - 6"
- NPT - 1" - 4"
- 150RF - 2" - 6"
- Optional parts for corrosive conditions
- Optional elastomer grades are available for different application conditions
