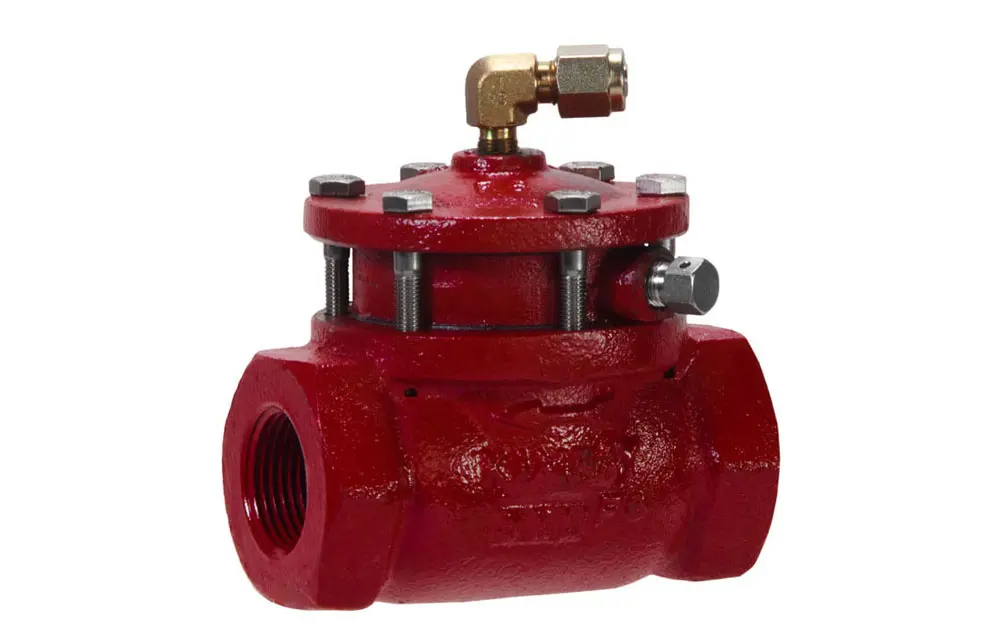

EUA
Single Acting Low Pressure Control Valves close when they receives a pneumatic signal (Pressure-to-Close). An optional spring is also available to hold the valve open when pneumatic signal is vented.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RCM + Add to Quote
Product Applications
Zoom in on interactive diagrams.
Product Charts
1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
1.1
20%
1.8
30%
2.4
40%
3.4
50%
4.8
60%
6.6
70%
8.5
80%
10.2
90%
11.9
100%
13.2
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 1 " |
| Connection Type: | Female NPT |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 1 " |
| Trim Type: | Modified EP |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 300 psig |
| Operation: | Pneumatic |
| Catalog Page: | 02:10.1 |
| Face-to-Face Length: | 4.375 " |
| Min Cv: | 1.8 |
| Max Cv: | 13.2 |
| Cf: | 0.86 |
