ESD

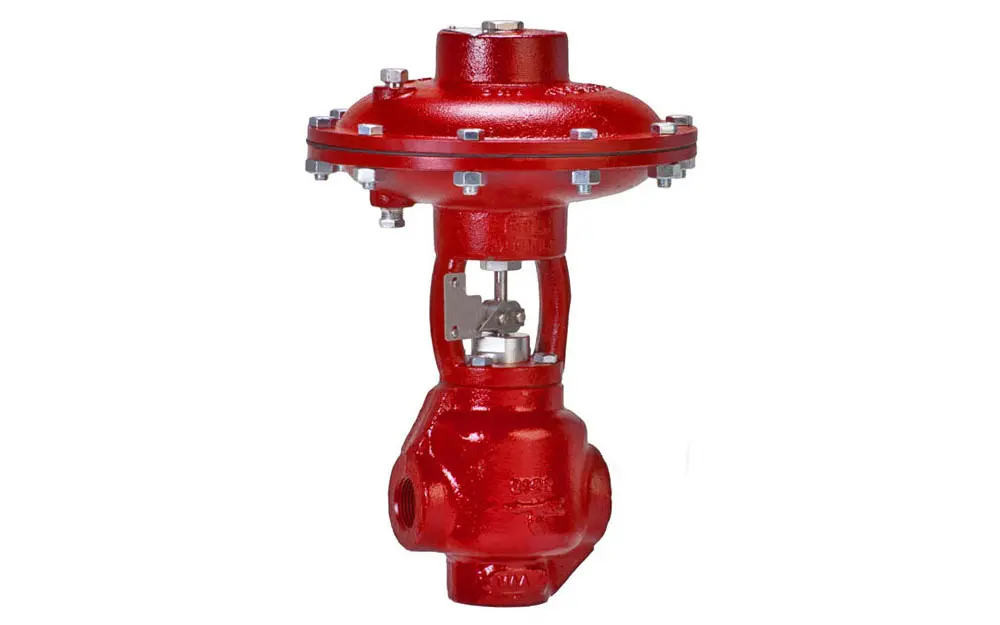

3-Way High Pressure Control Valves are used to divide flow into two directions, with the ability to seal off flow in one or the other direction.
These valves can be fitted with optional electric actuation, or operated with compressed air for zero-emission requirements.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RFC + Add to Quote
Product Applications
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 1 " |
| Connection Type: | Female NPT |
| Body Style: | 3 Way |
| Body Material: | Steel |
| NACE MR0175: | Option Available |
| Trim Size: | 0.817 " |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 3000 psig |
| Max Set Point Pressure: | 3000 psig |
| Operation: | Pneumatic |
| 100% Open Cv of Bottom Port: | 13.8 |
| Catalog Page: | 01:40.1 |
| Face-to-Face Length: | 5.16 " |
| Max Cv: | 8.3 |
| Cf: | 0.7 |
