EOS

Configuration Code:
CVC2BRTWFEP2S
Description:
2 FMT 300RF PB 2 IV

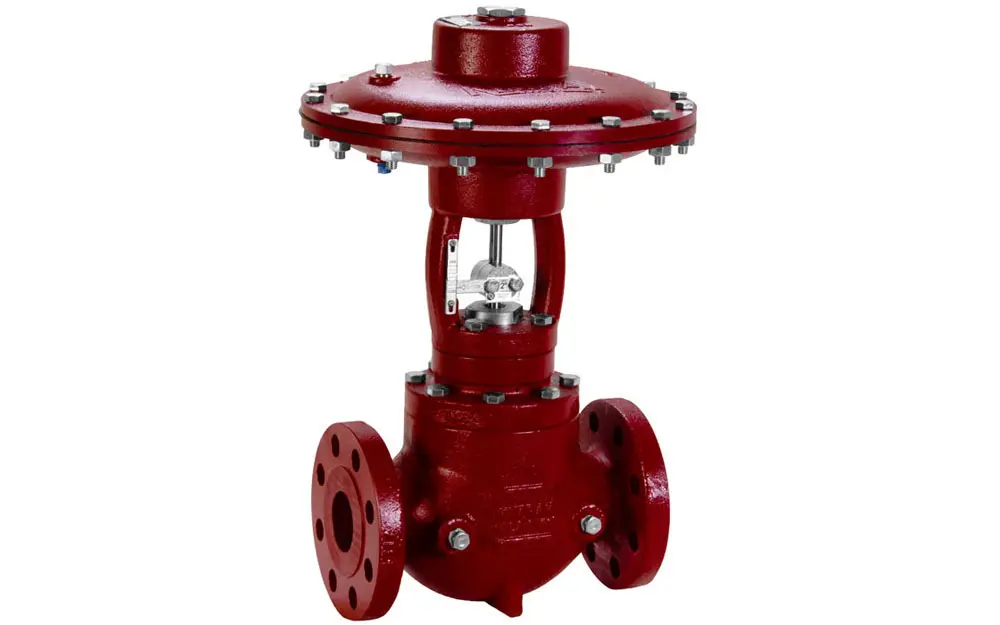

Cage-Guided Balanced High Pressure Control Valves can be used as Dump Valves or Pressure Regulators. Our Cage-Guided Control Valves have larger trim sizes (available in 2" thru 10" end connections) for larger valve coefficients (Cv) compared to the Stem-Guided series.

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams. They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

Product Applications

Applications Image
Zoom in on interactive diagrams.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
2
20%
4
30%
6
40%
8
50%
11
60%
20
70%
33
80%
45
90%
51
100%
57

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: 300 RF
Body Style: Through Body
Body Material: Steel
NACE MR0175: Option Available
Trim Size: 2 "
Trim Type: Equal Percentage
Leakage Class: Class VI
Process Fluid: Liquid and Gas
Max Working Pressure: 740 psig
Actuator Spring Nominal Pressure: 30 psig
Actuator Crack Open Pressure: 6 psig
Actuator Full Open Pressure: 30 psig
Max Supply Gas Pressure: 45 psig
Fail Position: Closed - Field Reversible
Operation: Pneumatic
Catalog Page: 01:20.1
Face-to-Face Length: 10.5 "
Min Cv: 4
Max Cv: 57
