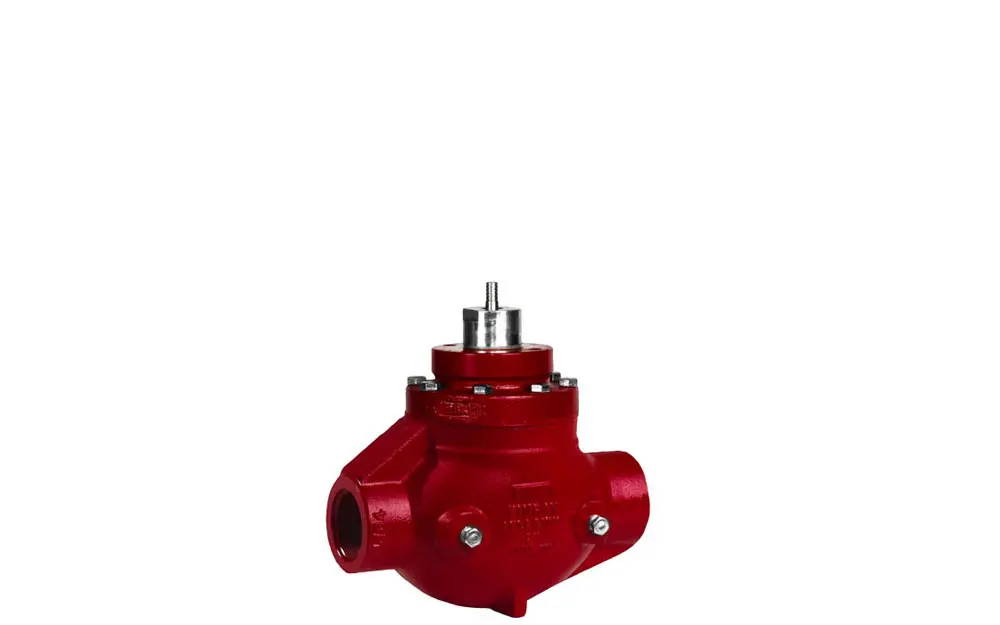

EFHBW
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 2 " |
| Connection Type: | Female NPT |
| Body Style: | Through Body |
| Body Material: | Steel |
| NACE MR0175: | Option Available |
| Trim Size: | 2 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 4000 psig |
| Catalog Page: | 01:20.1 |
| Face-to-Face Length: | 10.625 " |
| Additional Features: | Actuator Not Included |
| Min Cv: | 4 |
| Max Cv: | 57 |
| Cf: | 0.76 |
Product Training
Product Videos
Compatible Kits and Tools
| Type | Product Code | |
|---|---|---|
| Repair Kit: | RUR | + ADD TO QUOTE |
| Trim Set: | EFB |
Downloads & Updates
Documents
Frequently Asked Questions
The Cage Guided High Pressure Control Valve has larger trim sizes (available in 2" thru 10" end connections) for larger valve coefficients (Cv) compared to the Stem Guided series.
Cage Guided High Pressure Control Valve is a balanced valve that can be used as a dump valve, pressure regulator, suction controller, recirculation valve, as well as in plunger lift applications.
Yes, both angle and thru body configurations are available.
High Pressure Control Valves (HPCV) is a versatile product that can be used in pressure control and flow control.
Kimray's website has a sizing calculator that can help. By inputting your specific operating conditions, the calculator will determine the appropriate size for your High Pressure Control Valve.
Yes. The highest pressure rated High Pressure Control Valve is 6,000 psig. It is important to understand the pressure limitations when selecting the appropriate High Pressure Control Valve.
