CHA

Configuration Code:
DLD2SATDFLS
Description:
225 SOT-D MECH O/W VAL

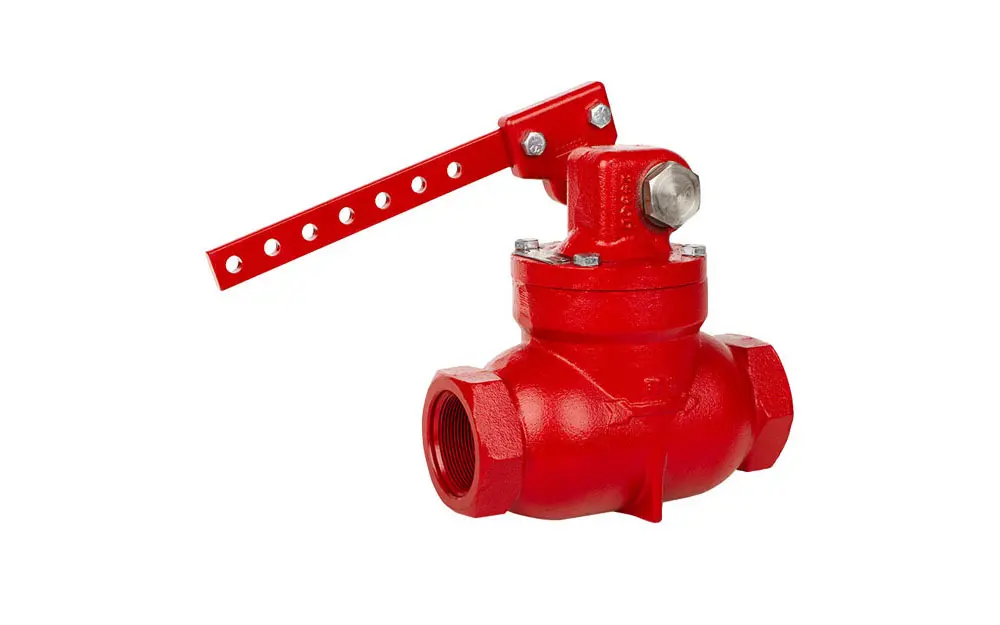

In the Lever-Operated Diaphragm Balanced Liquid Dump Valve, the upstream and downstream pressures used to balance the forces on the trim are separated by a diaphragm.

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams. They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

Product Applications

Applications Image
Zoom in on interactive diagrams.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
5
20%
8.5
30%
11.7
40%
14.6
50%
17
60%
19
70%
20.5
80%
21.6
90%
22.6
100%
23.3

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: Female NPT
Body Style: Through Body
Body Material: Cast Ductile
NACE MR0175: Option Available
Trim Size: 1.5 "
Trim Type: Linear (Nominal)
Leakage Class: Class VI
Process Fluid: Liquid and Gas
Max Working Pressure: 300 psig
Operation: Mechanical
Catalog Page: 03:10.1
Face-to-Face Length: 8.515 "
Min Cv: 8.5
Max Cv: 23.3
