AOTD2.5

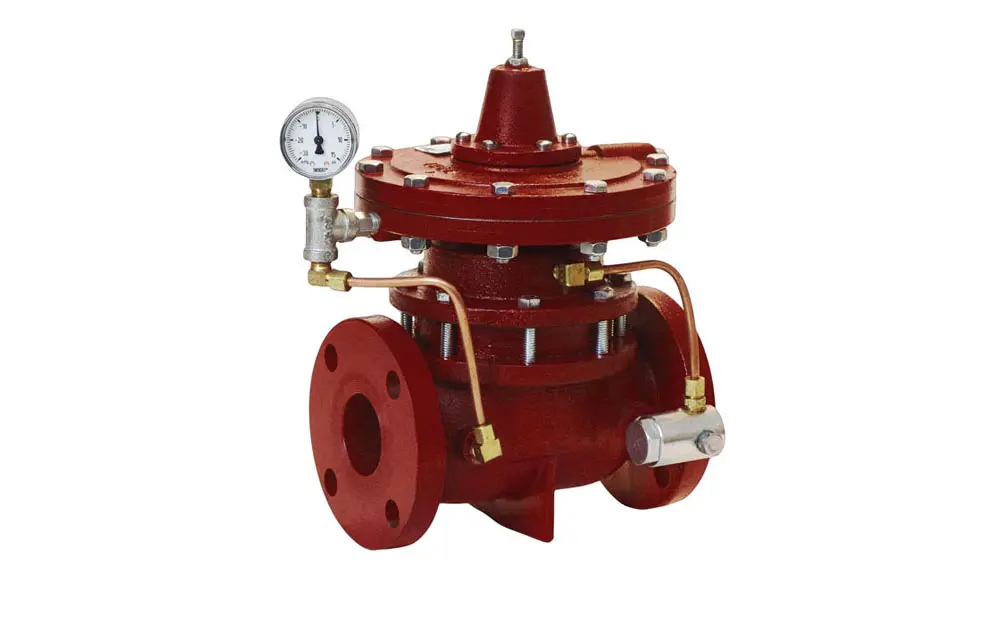

Low Pressure Pressure Reducing Regulators control pressure downstream of the valve and feature lower set point options than the standard Pressure Reducing Regulator.
These valves are classified as intermittent venting (non-bleed), and meet most producer's emissions standards.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RYI + Add to Quote
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 2 " |
| Connection Type: | 150 RF |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 2 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Gas |
| Pilot Type: | Vent |
| Max Working Pressure: | 250 psig |
| Min Set Point Pressure: | 0.03125 psig |
| Max Set Point Pressure: | 2.5 psig |
| Operation: | Pneumatic |
| Catalog Page: | 06:50.9 |
| Face-to-Face Length: | 9 " |
| Min Cv: | 6.2 |
| Max Cv: | 47 |
| Cf: | 0.84 |
