AKC

Configuration Code:
RBP1SAWF1S
Description:

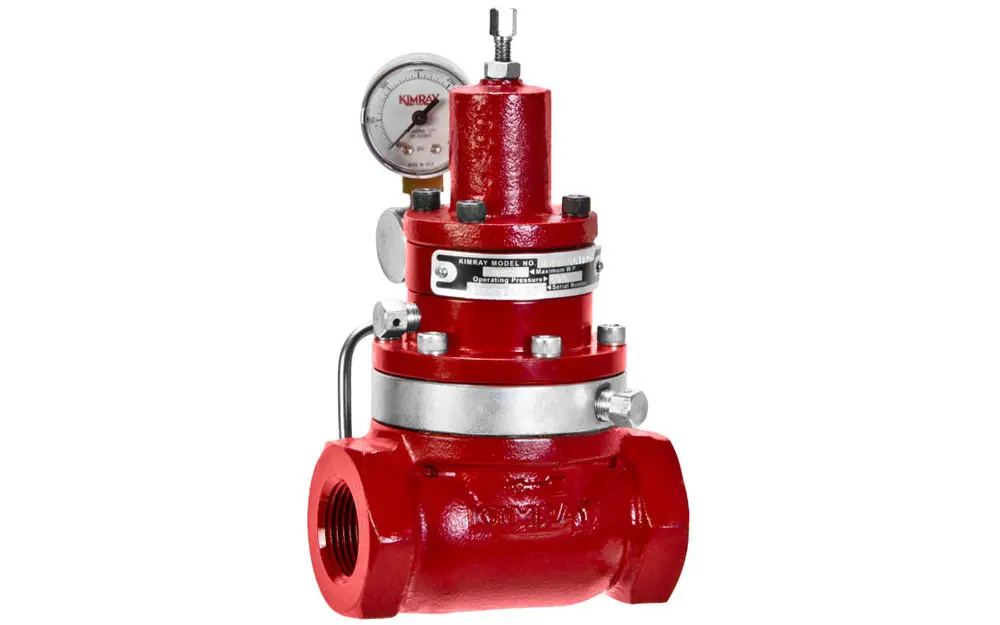

130 SGT BP-S REG

Control pressure upstream of the valve by adjusting the set point to the desired max upstream pressure. Used on separators, heater treaters, compressor stations, and gas gathering systems.

Utilizes process gas to operate integrated pilot. Gas must be clean and dry.

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams. They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

Product Applications

Applications Image
Zoom in on interactive diagrams.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
1.1
20%
1.8
30%
2.4
40%
3.4
50%
4.8
60%
6.6
70%
8.5
80%
10.2
90%
11.9
100%
13.2

Tech Specs

Type Value
Connection Size: 1 "
Connection Type: Female NPT
Body Style: Through Body
Body Material: Steel
NACE MR0175: Option Available
Trim Size: 1 "
Trim Type: Equal Percentage
Leakage Class: Class VI
Process Fluid: Gas
Pilot Type: Vent
Max Working Pressure: 300 psig
Min Set Point Pressure: 10 psig
Max Set Point Pressure: 300 psig
Operation: Pneumatic
Catalog Page: BL_A13212
Face-to-Face Length: 4.375 "
Min Cv: 1.8
Max Cv: 13.2
