Popular Product

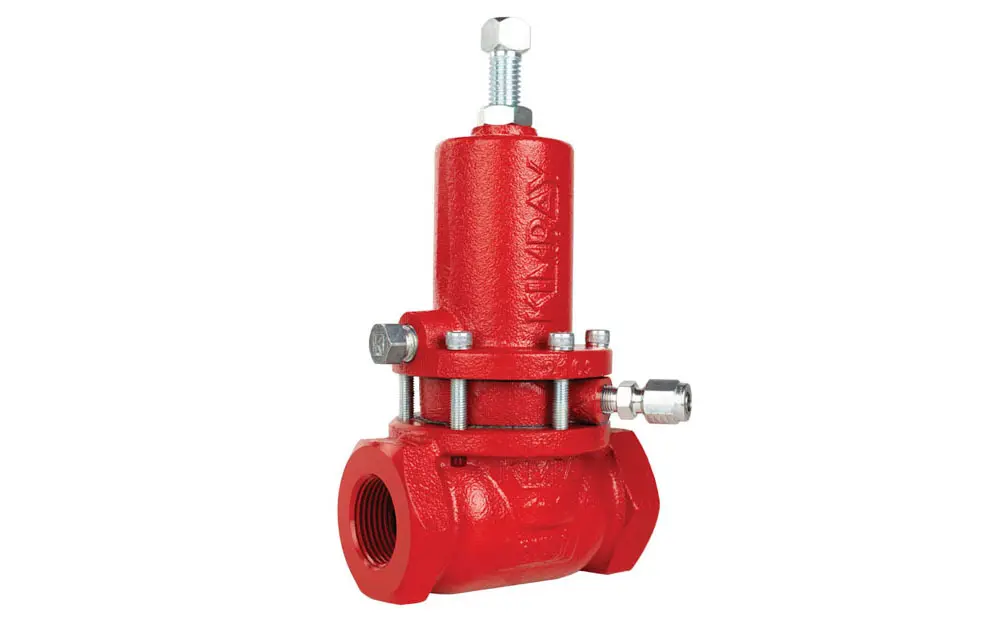

ABC2
Pneumatic Low Pressure Control Valves can be used for gas and liquid on low-pressure separators, emulsion treaters and other similar liquid accumulators.
Common applications include compression, dehydration, and separation.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RHE + Add to Quote
Product Applications
Zoom in on interactive diagrams.
Product Charts
1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
0.4
20%
0.7
30%
0.9
40%
1.3
50%
1.8
60%
2.5
70%
3.2
80%
3.9
90%
4.5
100%
5
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 1 " |
| Connection Type: | Female NPT |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 0.5 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 300 psig |
| Actuator Spring Nominal Pressure: | 40 psig |
| Fail Position: | Closed |
| Operation: | Pneumatic |
| Catalog Page: | 02:30.1 |
| Face-to-Face Length: | 4.375 " |
| Min Cv: | 0.7 |
| Max Cv: | 5 |
| Cf: | 0.86 |
