AAR

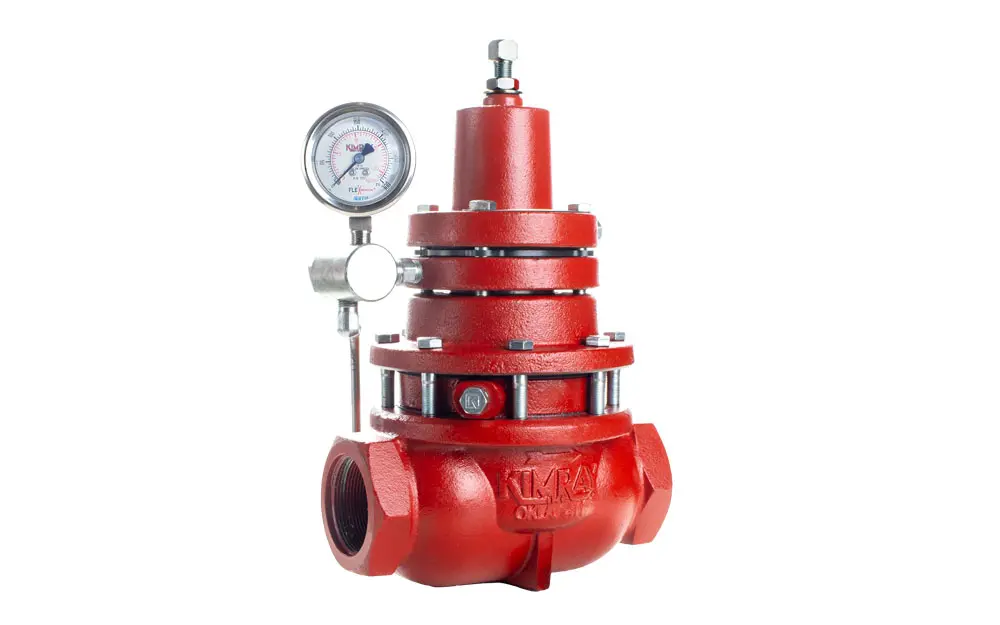

Back Pressure Regulators control pressure upstream of your production vessel. They are comonly used on separators, treaters, compressors, and gas gathering systems.
These valves are classified as intermittent venting (non-bleed), and meet most producer's emissions standards. Some models are available in a non-vent version.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RYG + Add to Quote
Product Applications
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 2 " |
| Connection Type: | Female NPT |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 2 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Gas |
| Pilot Type: | Vent |
| Max Working Pressure: | 300 psig |
| Min Set Point Pressure: | 10 psig |
| Max Set Point Pressure: | 300 psig |
| Operation: | Pneumatic |
| Catalog Page: | 06:10.1 |
| Face-to-Face Length: | 8.5 " |
| Min Cv: | 6.2 |
| Max Cv: | 47 |
| Cf: | 0.84 |
