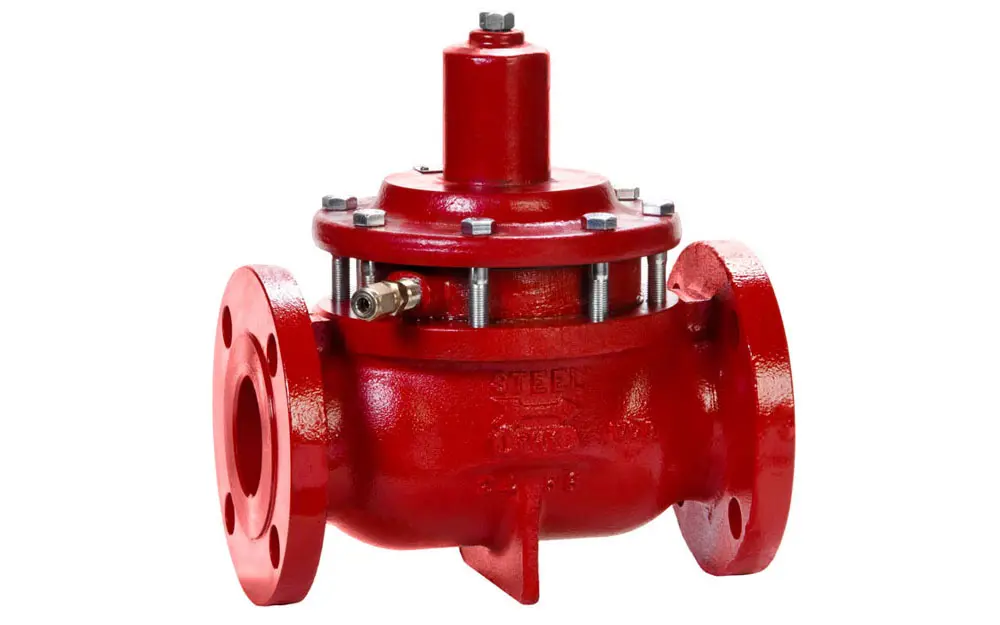

EUC5
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 2 " |
| Connection Type: | 150 RF |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 1.25 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 250 psig |
| Fail Position: | Closed |
| Operation: | Pneumatic |
| Catalog Page: | 02:20.1 |
| Face-to-Face Length: | 9 " |
| Min Cv: | 2.4 |
| Max Cv: | 24 |
| Cf: | 0.84 |
Product Training
Product Videos
Compatible Kits and Tools
| Type | Product Code | |
|---|---|---|
| Repair Kit: | ROI | + ADD TO QUOTE |
Downloads & Updates
Frequently Asked Questions
Low pressure applications (300 psi and below). Most commonly, these valves are used as a burner valve in burner management systems.
This valve has a spring acting on the top side of motor diaphragm plate in addition to the signal gas under the diaphragm plate. These valves can be used in liquid or gas applications. Because of the spring load on top of the diaphragm plate, these valves can be set up as fail-closed as long as the upstream pressure force is less than the spring force.
These products themselves do not vent, but the pneumatic signal used to actuate the valves is vented through the pilot. Due to the design, compressed air is not recommended as the actuation air. This is because if there is a failure of the stem packing, compressed air can be injected into the flow stream. To go emissions free with a pneumatic LPCV, it is recommended to use nitrogen gas a supply gas since it is chemically inert.
- Connection Sizes: 1" - 6"
- NPT - 1" - 4"
- 150RF - 2" - 6"
- Optional parts for corrosive conditions
- Optional elastomer grades are available for different application conditions
Still have a question? Send us a quick product message to get help from our team.
