CVS2FRDW06L2S
Description:
2 FMD 1500RF PO 3/8IV

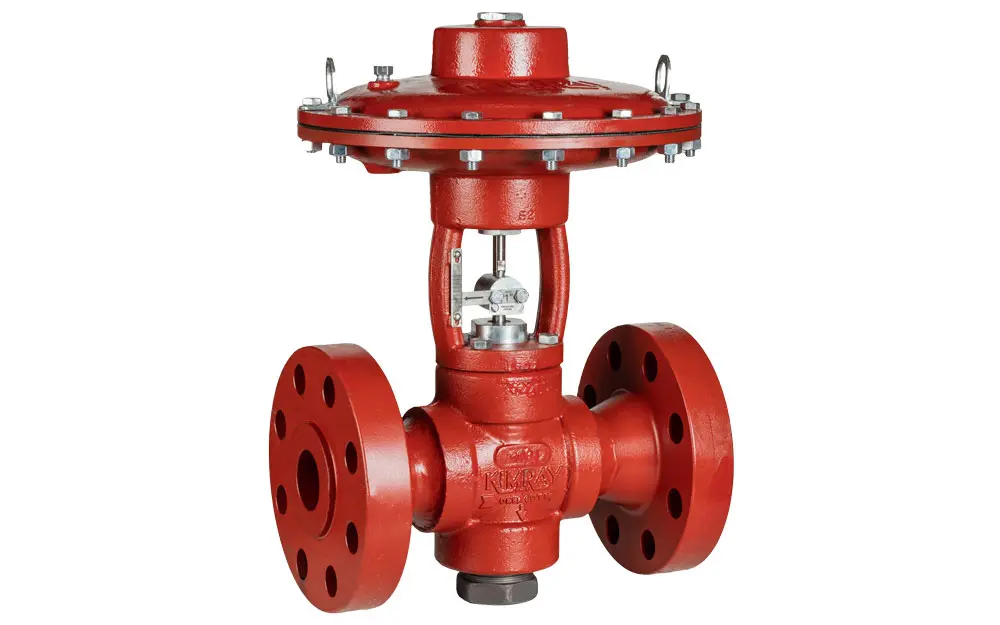

The Stem-Guided High Pressure Control Valve is a non-balanced valve that can be used as a dump valve, pressure regulator, suction controller, recirculation valve, as well as in plunger lift or flowback applications.

The Stem-Guided Control Valve has smaller trim sizes (available in 1" and 2" end connections) for smaller valve coefficients (Cv) compared to the Cage-Guided series. "Stem-guided" refers to the stem itself guiding the trim into its seat.

It can be fitted with optional electric actuation or operated with compressed air for zero-emission requirements.

See Technical Data for Spring Ranges

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams.

They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.

Product Applications

Applications Image
Zoom in on interactive diagrams.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
0.53
20%
1.33
30%
2.06
40%
2.8
50%
3.4
60%
3.6
70%
3.9
80%
4
90%
4
100%
4

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: 900/1500 RF
Body Style: T-Body (Flanged)
Body Material: Steel
NACE MR0175: Option Available
Trim Size: 0.375 "
Trim Type: Linear (Nominal)
Leakage Class: Class IV
Process Fluid: Liquid and Gas
Max Working Pressure: 3705 psig
Actuator Spring Nominal Pressure: 30 psig
Max Supply Gas Pressure: 45 psig
Fail Position: Closed - Field Reversible
Operation: Pneumatic
Catalog Page: 01:10.1
Min Cv: 1.33
Max Cv: 4
Cf: 0.77
