Product Applications
View this product on application diagrams

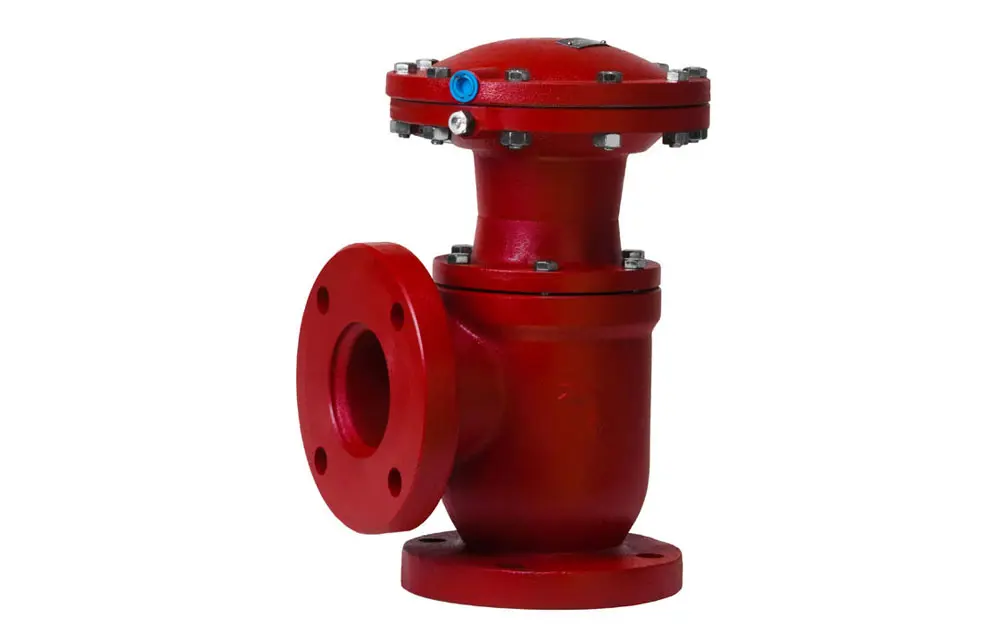

EKQ
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Product Charts
1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
6.7
20%
11.1
30%
15.6
40%
20.3
50%
24.8
60%
29.2
70%
33.4
80%
37.2
90%
40.7
100%
43.8
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 3 " |
| Connection Type: | 150 RF |
| Body Style: | Angled Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 2.25 " |
| Trim Type: | Linear (Nominal) |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 250 psig |
| Actuator Spring Nominal Pressure: | 35 psig |
| Actuator Crack Open Pressure: | 10 psig |
| Actuator Full Open Pressure: | 35 psig |
| Max Supply Gas Pressure: | 45 psig |
| Fail Position: | Closed |
| Operation: | Pneumatic |
| Catalog Page: | 04:10.1 |
| Min Cv: | 11.1 |
| Max Cv: | 43.8 |
| Cf: | 0.79 |
Product Training
Product Videos
Compatible Kits and Tools
| Type | Product Code | |
|---|---|---|
| Repair Kit: | RFR | + ADD TO QUOTE |
Downloads & Updates
Documents
Frequently Asked Questions
Can this valve be operated with an electric actuator, and can the valve be ordered without the pneumatic actuator on it?
Yes, any electric actuator sold by Kimray can be mounted on this valve. Other electric actuators could also work, as long as there is an adapter that works with the Kimray-style stem connection.
Any Kimray valve can be ordered without the pneumatic actuator, by adding "BW" to the end of the code, for example, MYABW.
Still have a question? Send us a quick product message to get help from our team.
