ECP

Configuration Code:
CVS2S2TW16LKS
Description:
2200 SMT PO 1 IN IV

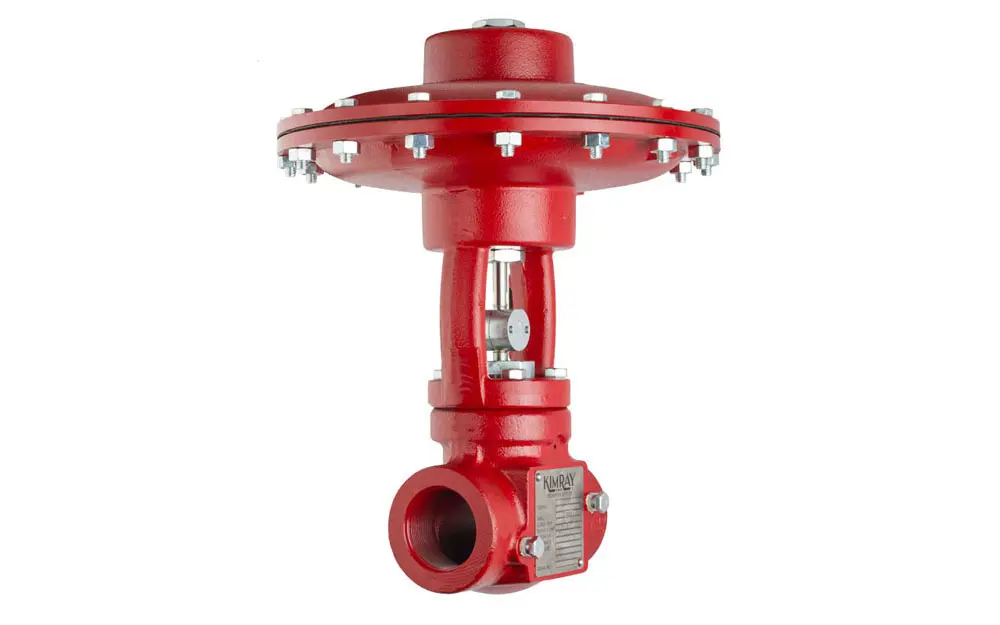

Stem-Guided Non-Balanced High Pressure Control Valves can be used as Dump Valves or Pressure Regulators. Our Stem-Guided Control Valves have smaller trim sizes (available in 1" and 2" end connections) for smaller valve coefficients (Cv) compared to the Cage-Guided series. "Stem-guided" refers to the stem itself guiding the trim into its seat.

See Technical Data for Spring Ranges

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams. They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

Product Applications

Applications Image
Zoom in on interactive diagrams.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
2.8
20%
7
30%
11
40%
15
50%
18
60%
19
70%
20
80%
21
90%
21
100%
21

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: Female NPT
Body Style: Through Body
Body Material: Steel
NACE MR0175: Option Available
Trim Size: 1 "
Trim Type: Linear (Nominal)
Leakage Class: Class IV
Process Fluid: Liquid and Gas
Max Working Pressure: 2000 psig
Actuator Spring Nominal Pressure: 20 psig
Max Supply Gas Pressure: 45 psig
Fail Position: Closed - Field Reversible
Operation: Pneumatic
Catalog Page: 01:10.1
Face-to-Face Length: 6.593 "
Min Cv: 7
Max Cv: 21
