EACPC10

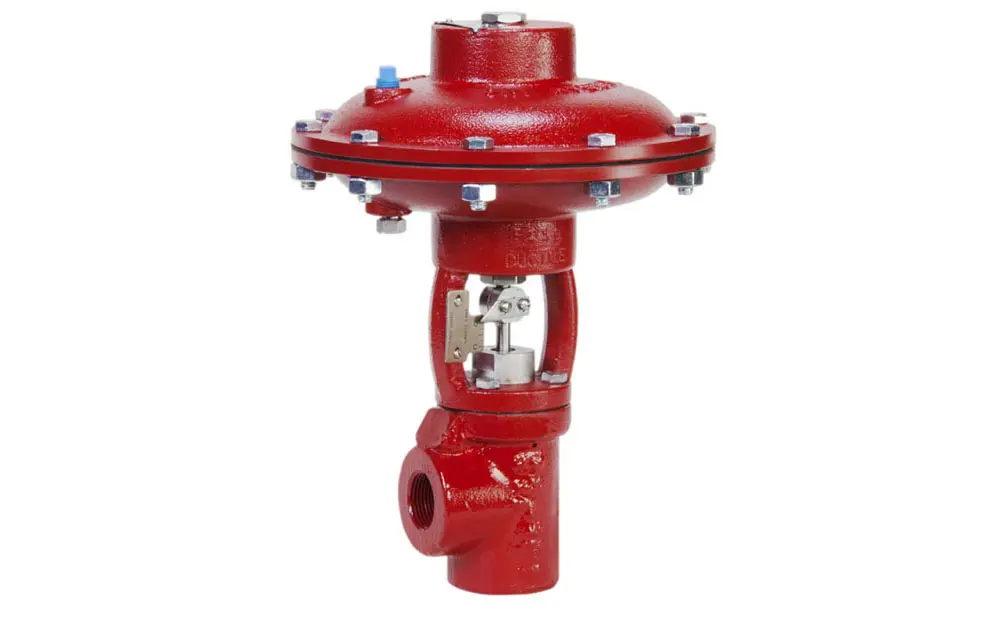

The Stem-Guided High Pressure Control Valve is a non-balanced valve that can be used as a dump valve, pressure regulator, suction controller, recirculation valve, as well as in plunger lift or flowback applications.
The Stem-Guided Control Valve has smaller trim sizes (available in 1" and 2" end connections) for smaller valve coefficients (Cv) compared to the Cage-Guided series. "Stem-guided" refers to the stem itself guiding the trim into its seat.
It can be fitted with optional electric actuation or operated with compressed air for zero-emission requirements.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RFA + Add to Quote
- Trim Set: T2839
Product Applications
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 1 " |
| Connection Type: | Female NPT |
| Body Style: | Angled Body |
| Body Material: | Steel |
| NACE MR0175: | Option Available |
| Trim Size: | 0.5 " |
| Trim Type: | Linear (Nominal) |
| Leakage Class: | Class IV |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 4000 psig |
| Actuator Spring Nominal Pressure: | 10 psig |
| Max Supply Gas Pressure: | 45 psig |
| Fail Position: | Open - Field Reversible |
| Operation: | Pneumatic |
| Catalog Page: | 01:10.1 |
| Min Cv: | 1.9 |
| Max Cv: | 5.7 |
| Cf: | 0.94 |
