DMA

Description:

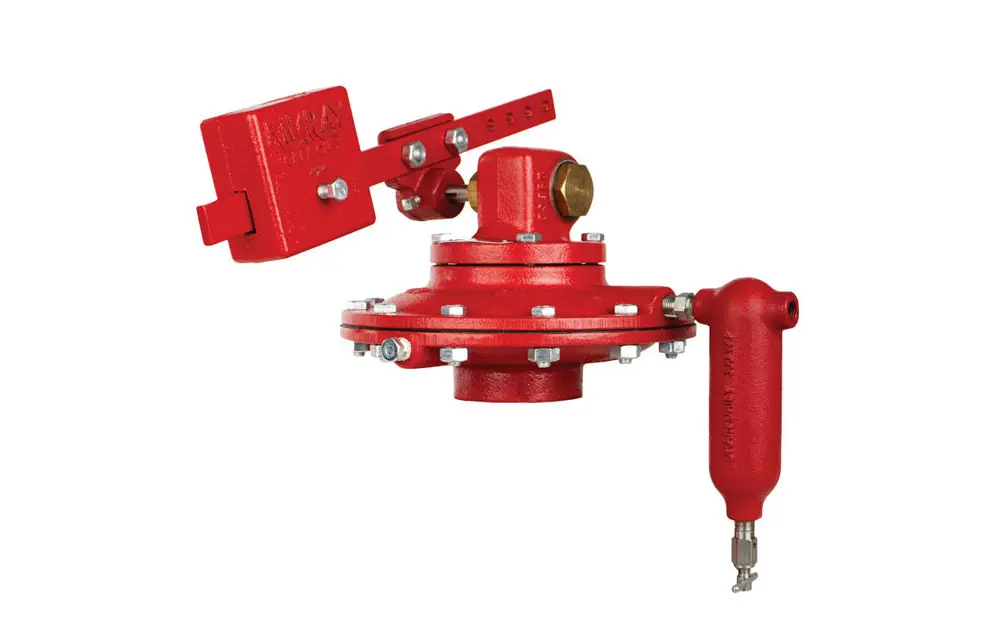

2IN WEIGHT OPER DIAPH BAL TRUN

Weight-Operated Dump Valves are ideal for zero-emissions level control in heater treaters and saltwater disposal systems. This valve actuates based on the hydrostatic pressure generated from the column of liquid in the discharge piping from the vessel. The height of water column can be field adjusted by moving the weight on the arm in or out and ranges from 2 ft to 4 feet, with options up to 12 feet.

The Diaphragm Balanced Trunnion works in conjunction with a Lever Operated Dump Valve to enable level control without the use of a float

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams.

They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.

Product Applications

Applications Image
Zoom in on interactive diagrams.

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: Female NPT
Body Material: Cast Ductile
Pilot Type: Vent
Max Working Pressure: 125 psig
Max Set Point Pressure: 125 psig
Catalog Page: 05:20.1
