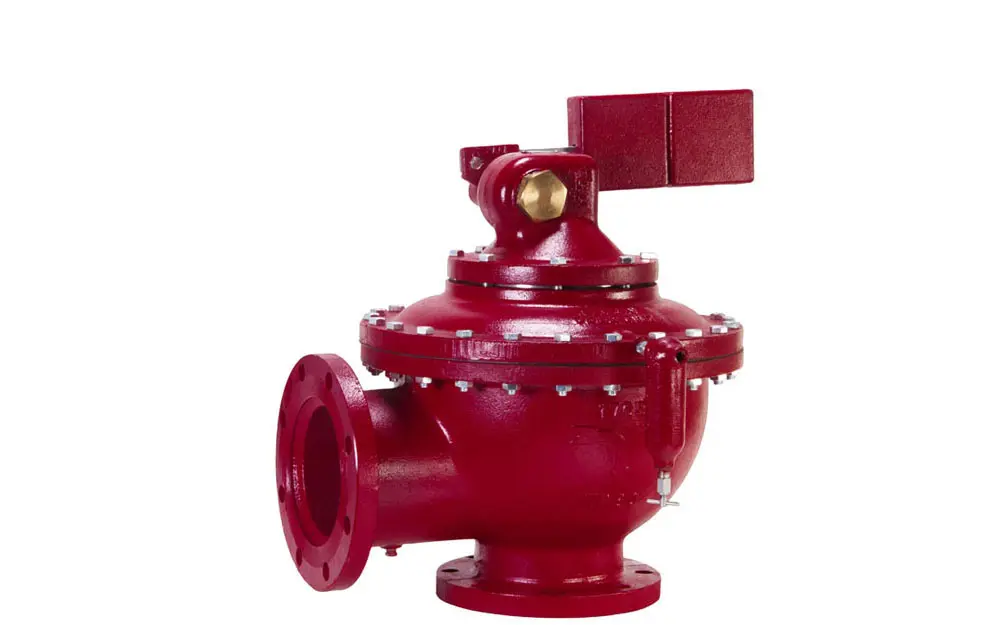

DAE
Weight-Operated Dump Valves are ideal for zero-emissions level control in heater treaters and saltwater disposal systems. This valve actuates based on the hydrostatic pressure generated from the column of liquid in the discharge piping from the vessel. The height of water column can be field adjusted by moving the weight on the arm in or out and ranges from 2 ft to 4 feet, with options up to 12 feet.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: REP + Add to Quote
Product Applications
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 6 " |
| Connection Type: | 150 RF |
| Body Style: | Angled Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 6 " |
| Trim Type: | Linear (Nominal) |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 60 psig |
| Operation: | Weight-Operated |
| Catalog Page: | 05:10.1 |
| Min Cv: | 32.6 |
| Max Cv: | 371.9 |
| Cf: | 0.75 |
