CGS

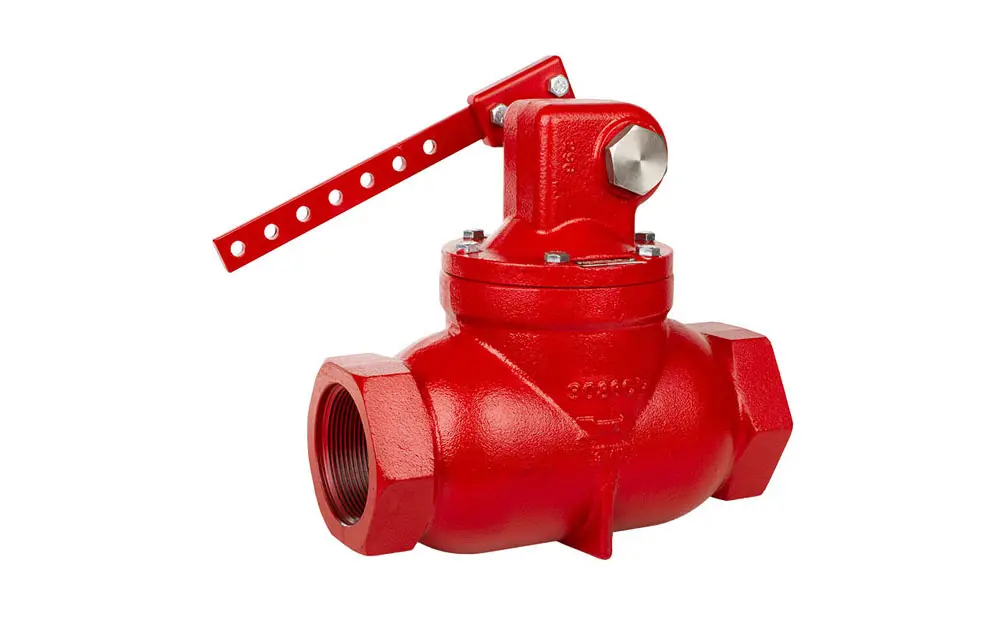

Lever-Operated Liquid Dump Valves are a reliable, zero-emissions product designed to dump liquid from oil and gas production vessels such as separators, treaters, and free water knockouts.
In the Lever Operated Piston Balanced models, the upstream and downstream pressures used to balance the forces on the trim are separated by a piston, sealed with an O-ring, allowing for higher pressure differential.
Since this valve is mechanically-operating, it is a great option to help producers meet their emissions standards.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RNB + Add to Quote
Product Applications
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 3 " |
| Connection Type: | Female NPT |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 2.25 " |
| Trim Type: | Linear (Nominal) |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 250 psig |
| Operation: | Mechanical |
| Catalog Page: | 03:20.5 |
| Face-to-Face Length: | 12 " |
| Min Cv: | 11.1 |
| Max Cv: | 43.8 |
| Cf: | 0.79 |
