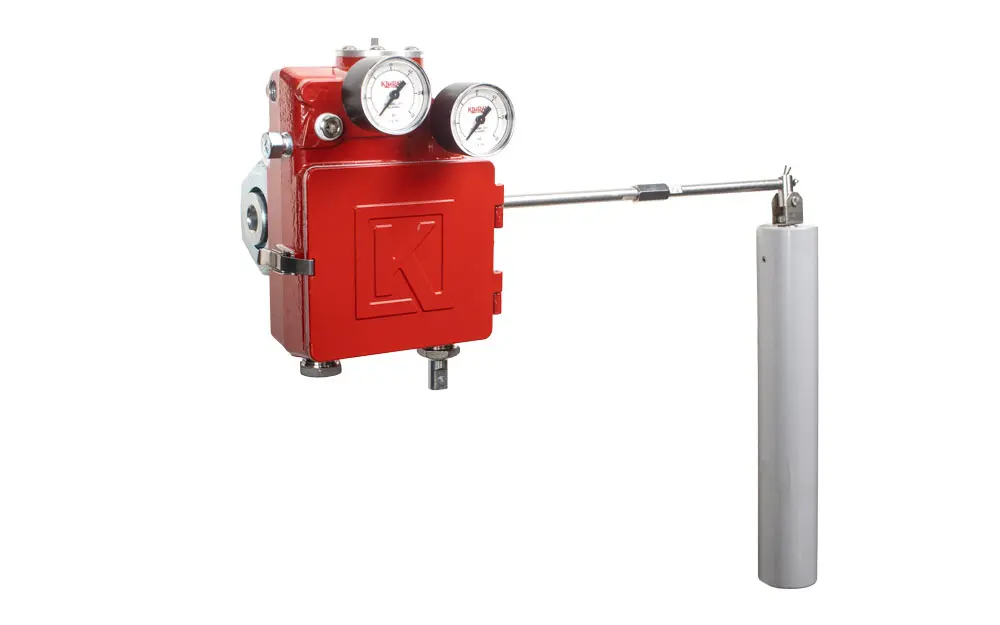

LCL

Configuration Code:
FPL2S4L1AS
Description:
GEN 3 LLC 2 NPT LH

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: Male NPT
Body Material: ASTM A352 LCB
NACE MR0175: Option Available
Pilot Output: Direct or Indirect (Field Reversible)
Max Working Pressure: 4000 psig
Mounting Orientation: Left Mount or Back Mount
Operation: Pneumatic
Catalog Page: 08:05.1
Elastomer: FKM
Float Material: PVC

Product Training

Learning Path

Check out our learning paths for product videos, step-by-step repair guides, troubleshooting tips, and more.

Start Learning Path

Product Videos

Frequently Asked Questions

Is there a Back Mount version?

The Gen 3 was designed to fit into tight spaces, having the same depth as the Gen II Back Mount, so the standard Gen 3 can be used as Side Mount and Back Mount.

For Back Mount applications, we recommend using the Left Side Mount due to the swing direction of the cover, but because the cover can be lifted off the hinges, the controls of either Side Mount will be easily accessible.

No, do not loosen or remove the standard Socket Plug when the vessel is pressurized. To facilitate quicker cleanout, some customers have connected an adapter to the 1-1/16 - 12 UN-2 port and installed a ball valve to allow for debris to blow out of the port while the vessel is pressurized. Doing this on your vessel would depend on whether your site's safety standards allow for it.

For the product to be NACE MR0175 compliant, order the base code with "S6" at the end. For example: "LCLS6"

For the product to be NACE MR0175 certified, order the code with "S6NC" at the end. For example: "LCLS6NC"
