ACU

Configuration Code:
RDP2SADF1S
Description:

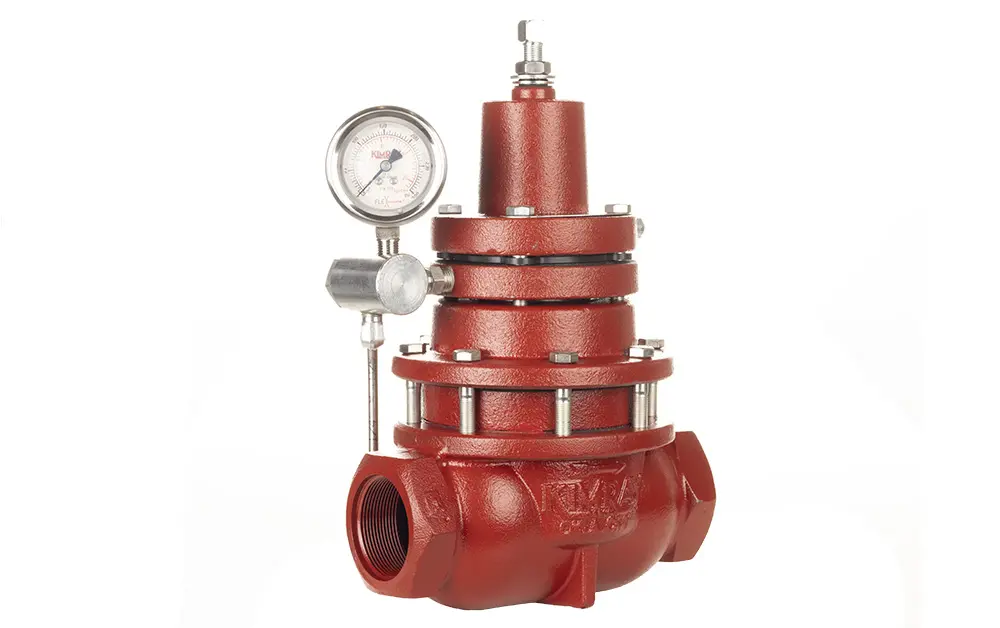

230 SGT PD-D 300# WP

Differential Pressure Regulators are used to maintain a constant pressure drop across the valve.

Utilizes process gas to operate integrated pilot. Gas must be clean and dry.

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams. They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

Product Applications

Applications Image
Zoom in on interactive diagrams.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
4
20%
6.2
30%
8.6
40%
12.1
50%
17.2
60%
23.5
70%
30.4
80%
36.3
90%
42.5
100%
47

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: Female NPT
Body Style: Through Body
Body Material: Cast Ductile
NACE MR0175: Option Available
Trim Size: 2 "
Trim Type: Equal Percentage
Leakage Class: Class VI
Process Fluid: Gas
Pilot Type: Vent
Max Working Pressure: 300 psig
Min Set Point Pressure: 10 psig
Max Set Point Pressure: 300 psig
Operation: Pneumatic
Catalog Page: A:50.3
Face-to-Face Length: 8.5 "
Min Cv: 6.2
Max Cv: 47
