MDG

Configuration Code:
CVS2DRAW10E8S
Description:
2 FMVA 600RF 5/8IV

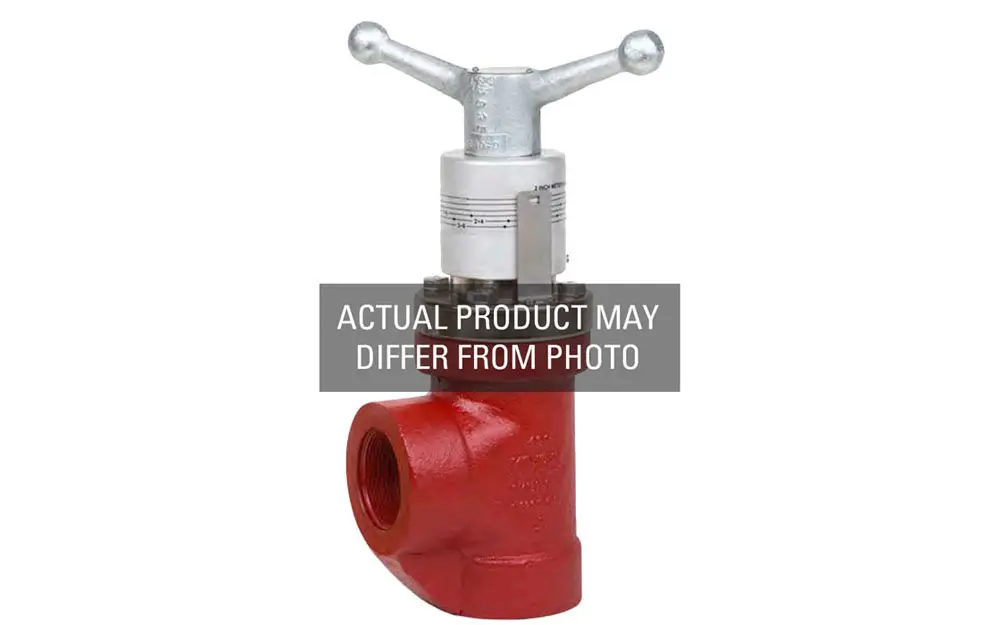

Metering Valves can be used to meter or control the flow of liquids and/or gases on meter runs or flow lines. They can be used as a choke under low pressure drop conditions where freezing is not a problem. Metering Valves are used any time a reference control point is required in 64ths of an inch opening.

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams.

They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.

Product Applications

Applications Image
Zoom in on interactive diagrams.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
0.3
20%
0.5
30%
0.9
40%
1.1
50%
1.4
60%
2.3
70%
3.9
80%
6.4
90%
8.7
100%
10.76

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: 600 RF
Body Style: Angled Body
Body Material: Steel
NACE MR0175: Option Available
Trim Size: 0.625 "
Trim Type: Equal Percentage
Leakage Class: Class IV
Process Fluid: Liquid and Gas
Max Working Pressure: 1480 psig
Operation: Manual
Catalog Page: 01:70.1
Min Cv: 0.5
Max Cv: 10.76
Cf: 0.58
