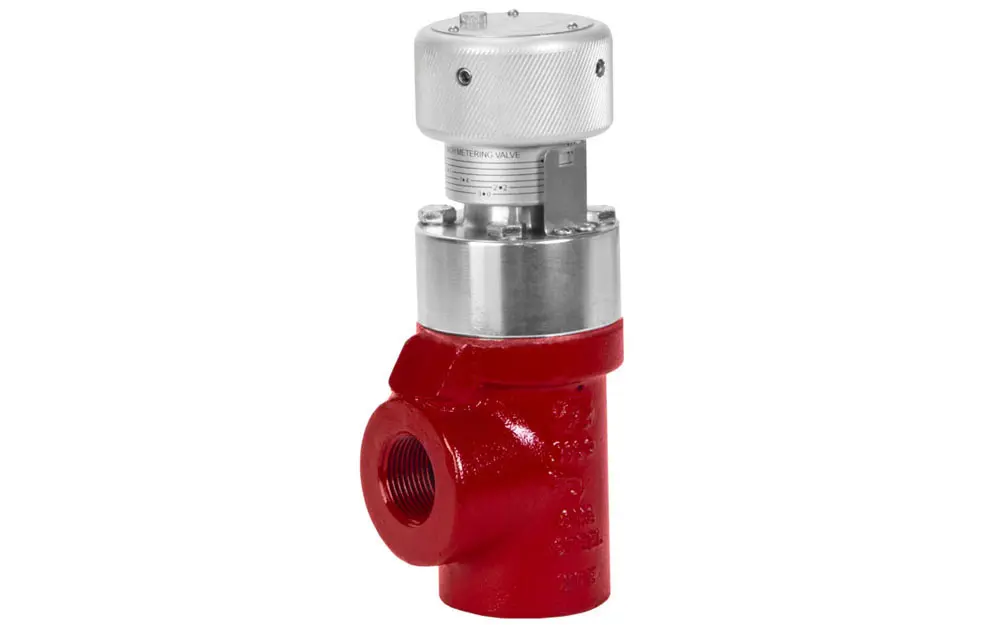

Metering Valves can be used to meter or control the flow of liquids and/or gases on meter runs or flow lines. They can be used as a choke under low pressure drop conditions where freezing is not a problem. Metering Valves are used any time a reference control point is required in 64ths of an inch opening.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RSH + Add to Quote
- Trim Set: T4730MV
Product Applications
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 1 " |
| Connection Type: | Female NPT |
| Body Style: | Angled Body |
| Body Material: | Steel |
| NACE MR0175: | Option Available |
| Trim Size: | 0.25 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class IV |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 4000 psig |
| Operation: | Manual |
| Catalog Page: | 01:70.1 |
| Min Cv: | 0.1 |
| Max Cv: | 1.99 |
| Cf: | 0.66 |
