ALID5

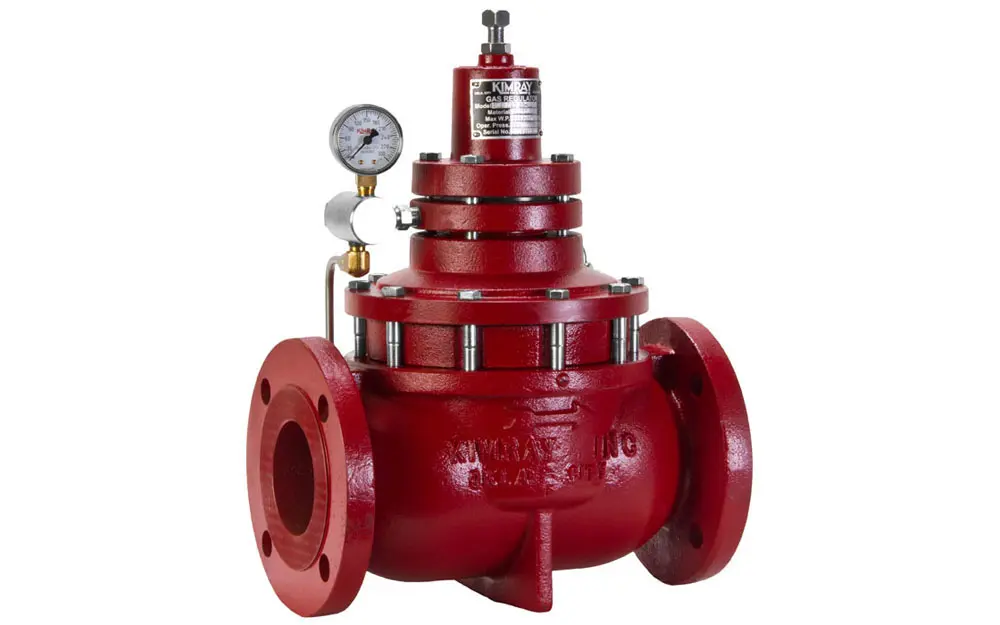

Back Pressure Non-Vent Regulators control pressure upstream of your production vessel while releasing zero emissions.
These regulators are commonly used on separation equipment in enclosed areas or where emissions are a concern.
Utilizes process gas to operate integrated pilot. Gas must be clean and dry.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RYK + Add to Quote
Product Charts
1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
2.9
20%
4.5
30%
6.2
40%
8.8
50%
12.5
60%
17
70%
22
80%
26.3
90%
30.7
100%
34
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 3 " |
| Connection Type: | 150 RF |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 1.625 " |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Gas |
| Pilot Type: | Non Vent |
| Max Working Pressure: | 250 psig |
| Min Set Point Pressure: | 10 psig |
| Max Set Point Pressure: | 250 psig |
| Min Differential Pressure: | 10 psi |
| Operation: | Pneumatic |
| Catalog Page: | 06:20.1 |
| Face-to-Face Length: | 12.188 " |
| Min Cv: | 4.5 |
| Max Cv: | 34 |
| Cf: | 0.82 |
