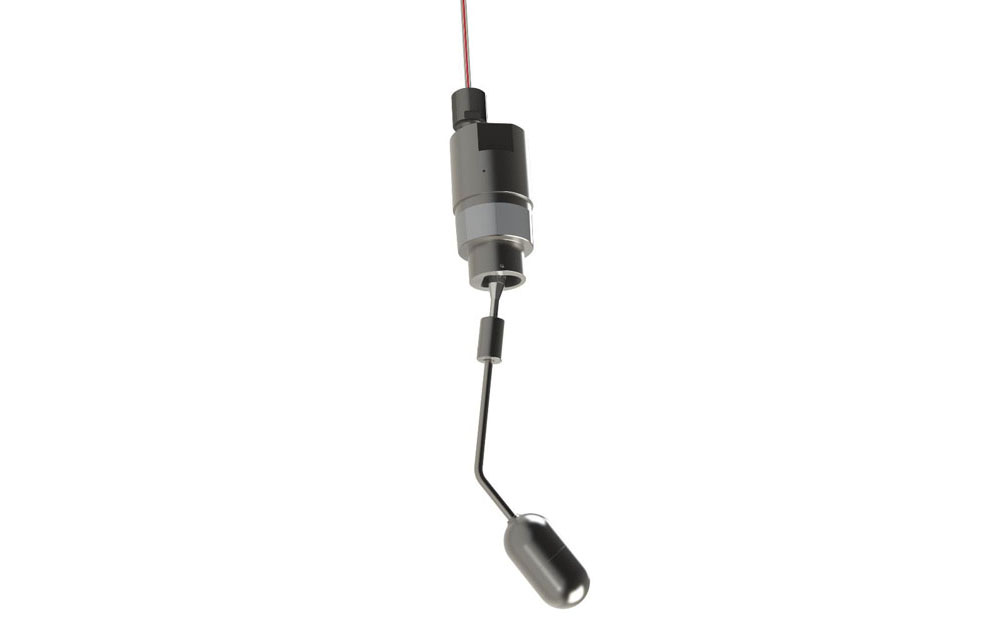

CEC1VRT

2200 SLS VRT SS6 FLOAT

Liquid Level Control | Liquid Level Switch - Electric

Vertical Mount, No Manual Override
2" Male NPT

Operation: Electric
Pilot Type: Non Vent
Vertical Displacer

Options Included In This Model:

  • Displacer or Float Material: Stainless Steel

Can be used as either a High Level or Low Level switch in a pressurized tank, sending an electric output. Electric output can be used to activate alarms, solenoid valves or other electrically switched devices.

Specifications

  • Connection Size: 2 "
  • Connection Type: Male NPT
  • Body Material: 316 SS
  • NACE MR0175 Compliant
  • Pilot Type: Non Vent
  • Max. Working Pressure: 2000 psig
  • Displacer Orientation: Vertical
  • Operation: Electric
  • Hazardous Location Certification: Class I, Div 1
  • Catalog Page: C1:50.4

Downloadable Documents


Tech Specs

Downloadable Models


Solidworks Model
STEP Model
DXF Model

Request Model
