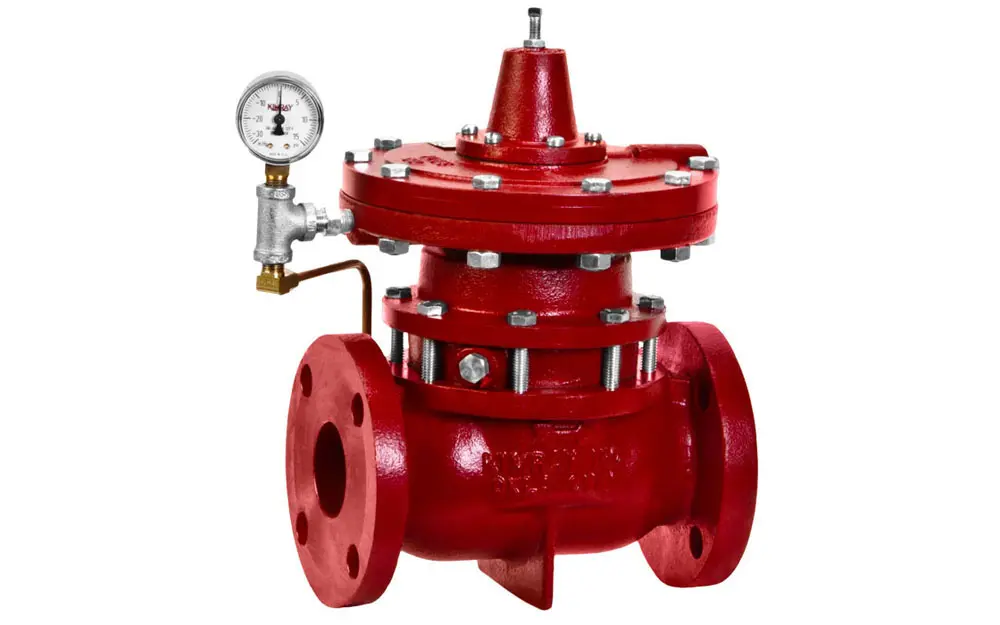

AAJD2.5

Configuration Code:
RAB2ARDF4S
Description:
2.2 FGT OBPA-D W/2.5#SPR

Low Pressure Back Pressure to Atmosphere Regulators control pressure upstream of your production vessel and feature lower set point options than the standard Back Pressure Regulator.

These regulators are set up to use an outside supply of pressure from air compressors in order to support producers' emissions goals.



Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams.

They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
4
20%
6.2
30%
8.6
40%
12.1
50%
17.2
60%
23.5
70%
30.4
80%
36.3
90%
42.5
100%
47

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: 150 RF
Body Style: Through Body
Body Material: Cast Ductile
NACE MR0175: Option Available
Trim Size: 2 "
Trim Type: Equal Percentage
Leakage Class: Class VI
Process Fluid: Liquid and Gas
Pilot Type: Vent
Max Working Pressure: 250 psig
Min Set Point Pressure: 0.03125 psig
Max Set Point Pressure: 2.5 psig
Operation: Pneumatic
Catalog Page: 06:90.7
Face-to-Face Length: 9 "
Min Cv: 6.2
Max Cv: 47
Cf: 0.84
