This product has been discontinued and replaced by AARS6V.

AAAS6V

Description:

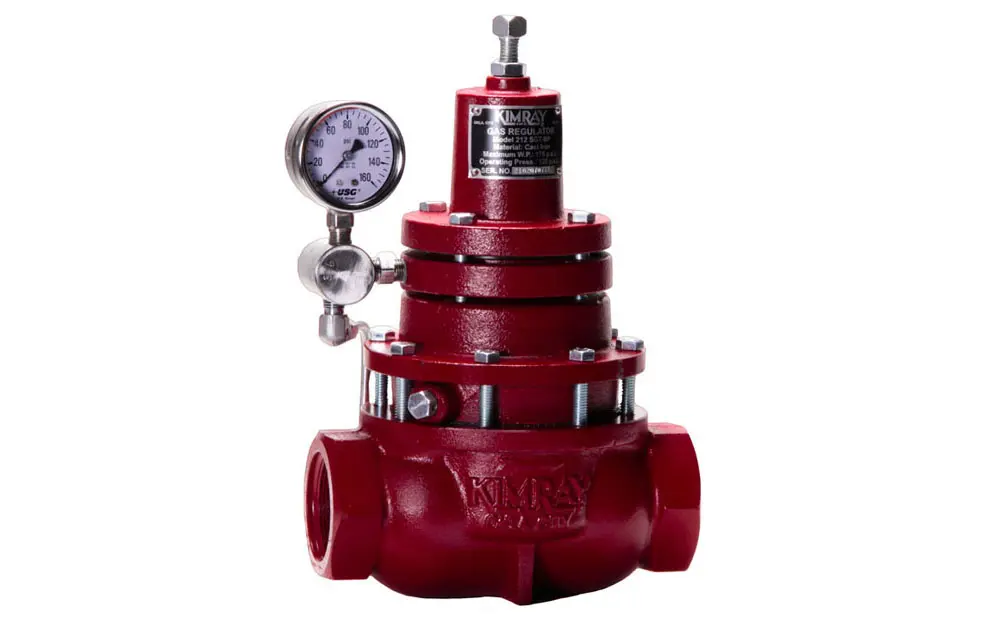

212 SGT BP REG S6 VITON
Utilizes process gas to operate integrated pilot. Gas must be clean and dry.

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

This product has been discontinued and replaced by AARS6V.
Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams. They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
4.4
20%
6.9
30%
9.5
40%
13.4
50%
19.1
60%
26
70%
33.6
80%
40.2
90%
47
100%
52

Tech Specs

Type Value
Connection Size: 2 "
Connection Type: Female NPT
Body Style: Through Body
Body Material: Cast Ductile
NACE MR0175: Compliant
Trim Size: 2 "
Trim Type: Equal Percentage
Trim Material: Stainless Steel
Leakage Class: Class VI
Process Fluid: Gas
Pilot Type: Vent
Max Working Pressure: 175 psig
Min Set Point Pressure: 5 psig
Max Set Point Pressure: 125 psig
Operation: Pneumatic
Catalog Page: A:10.3
Face-to-Face Length: 8.5 "
Elastomer: FKM
Min Cv: 6.9
Max Cv: 52
