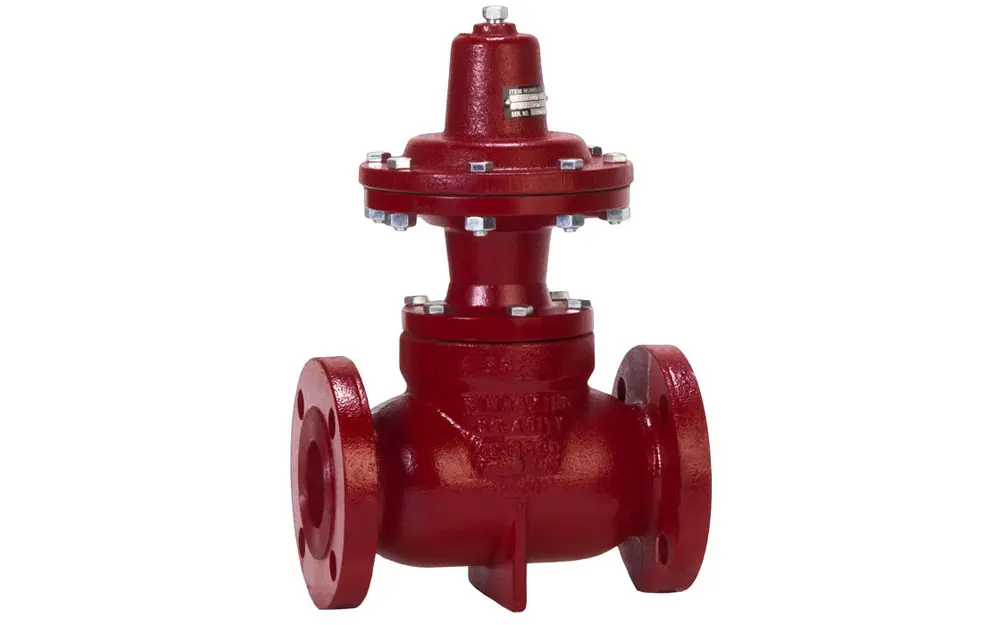

EYD
Configuration Code:
DPB2ARTDF4S
Description:
225 FMT PB PC-D W/O TI
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
This product has been discontinued. Contact your Kimray representative to inquire about a replacement product.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RFQ + Add to Quote
Product Charts
1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
5
20%
8.5
30%
11.7
40%
14.6
50%
17
60%
19
70%
20.5
80%
21.6
90%
22.6
100%
23.3
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 2 " |
| Connection Type: | 150 RF |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 1.5 " |
| Trim Type: | Linear (Nominal) |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 250 psig |
| Actuator Spring Nominal Pressure: | 25 psig |
| Actuator Crack Open Pressure: | 10 psig |
| Actuator Full Open Pressure: | 25 psig |
| Max Supply Gas Pressure: | 45 psig |
| Fail Position: | Open |
| Operation: | Pneumatic |
| Face-to-Face Length: | 9 " |
| Min Cv: | 8.5 |
| Max Cv: | 23.3 |
| Cf: | 0.79 |
