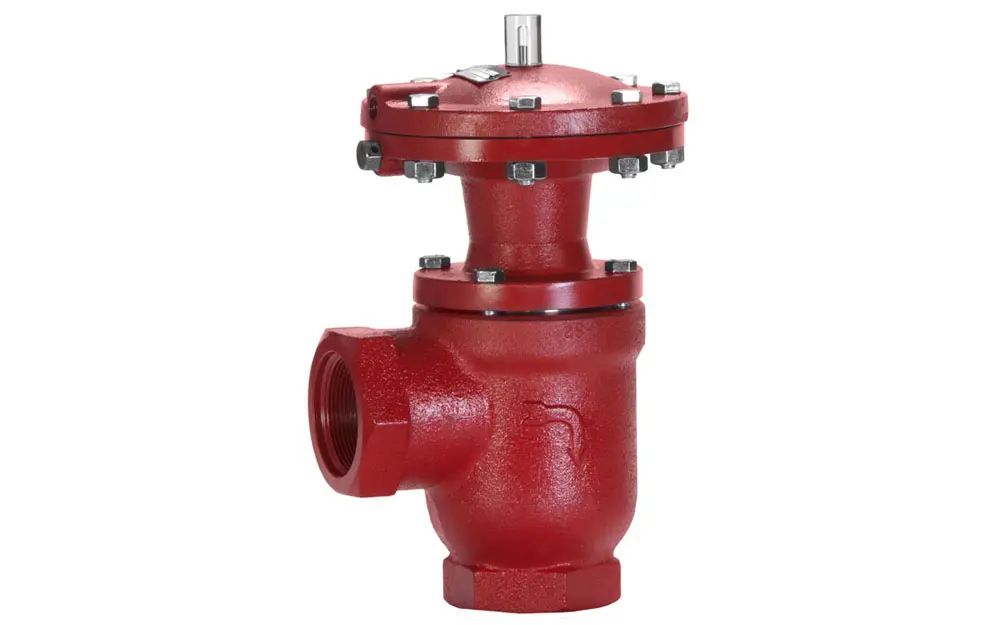

EJA
Description:
212 SMA DB PO W/TI
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
This product has been discontinued and replaced by EKI.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RFL + Add to Quote
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 2 " |
| Connection Type: | Female NPT |
| Body Style: | Angled Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 1.5 " |
| Trim Type: | Linear (Nominal) |
| Leakage Class: | Class VI |
| Process Fluid: | Liquid and Gas |
| Max Working Pressure: | 175 psig |
| Actuator Spring Nominal Pressure: | 35 psig |
| Actuator Crack Open Pressure: | 10 psig |
| Actuator Full Open Pressure: | 35 psig |
| Max Supply Gas Pressure: | 45 psig |
| Fail Position: | Closed |
| Operation: | Pneumatic |
| Catalog Page: | 04:10.1 |
| Max Cv: | 23.3 |
| Cf: | 0.79 |
