CCAL36S6HSN
Description:
612TO COVER-D L36 S6 HSN

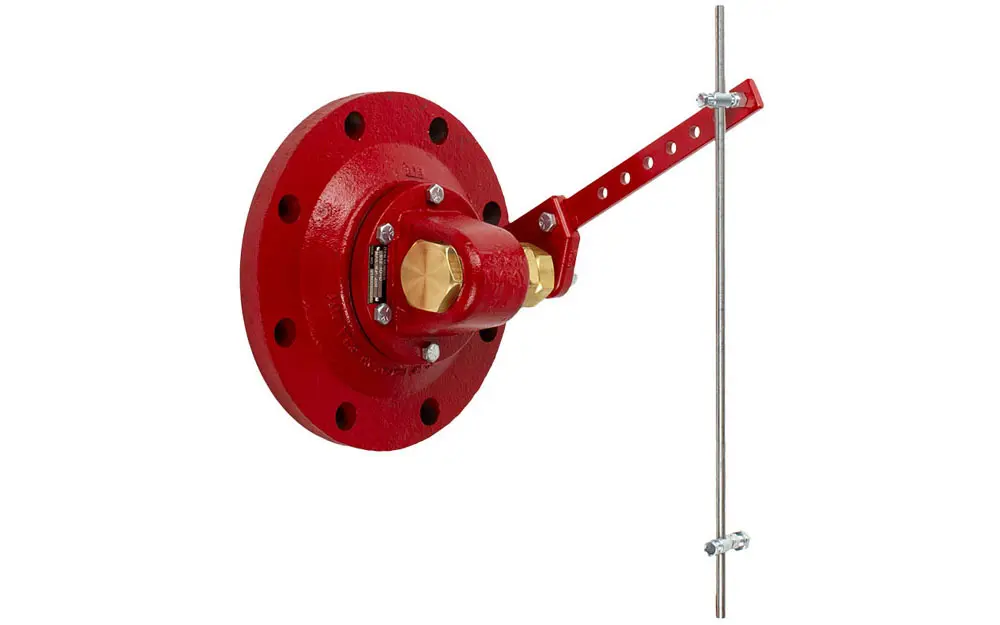

Trunnion assemblies connect to the vessel and sense the liquid level, moving a lever up and down, linking to and operating a lever operated dump valve.
A float and float arm must also be ordered separately to complete the trunnion assembly.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: REEHSN + Add to Quote
Product Applications
Zoom in on interactive diagrams.
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 6 " |
| Connection Type: | 150 RF |
| Body Material: | Cast Ductile |
| NACE MR0175: | Compliant |
| Trim Material: | Stainless Steel |
| Max Working Pressure: | 250 psig |
| Operation: | Mechanical |
| Catalog Page: | 03:50.1 |
| Material Test Report: | Included |
| Elastomer: | HSN |
| Additional Features: | 36" Lever Bar |
