This product has been discontinued. Contact your Kimray representative to inquire about a replacement product.

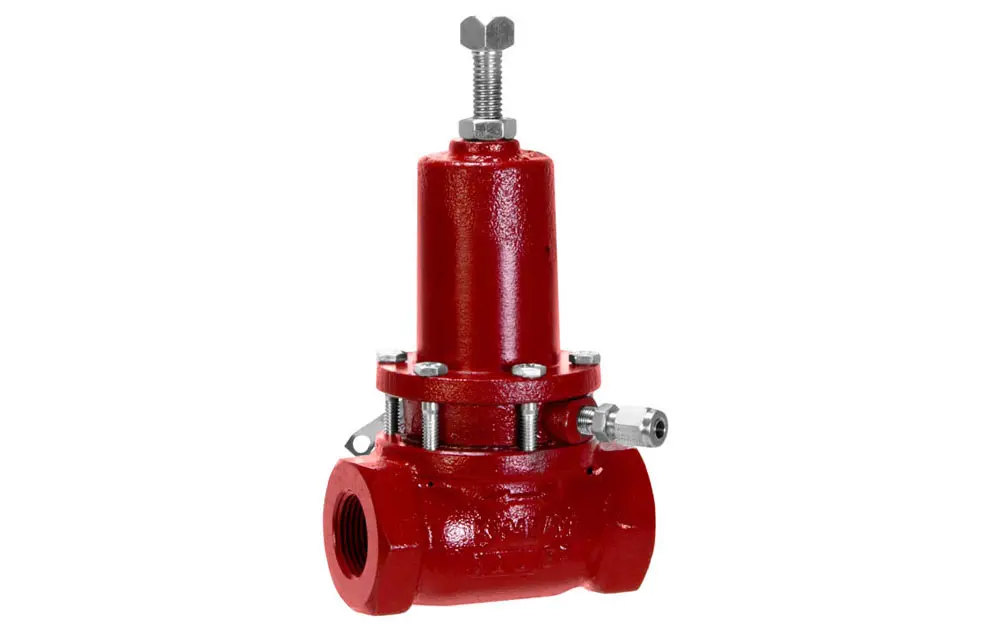

ABCS6

Description:
112 SMT ADA S6

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

This product has been discontinued. Contact your Kimray representative to inquire about a replacement product.
Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Need Service?

Our certified technicians work closely with our engineering and product design teams. They have direct access to the most up-to-date product information.

Request Service

Repairs & Maintenance

Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.

Product Charts

1 of 1: Flow Coefficient (Cv) at Stem Travel (% Open)
10%
1.1
20%
1.8
30%
2.4
40%
3.4
50%
4.8
60%
6.6
70%
8.5
80%
10.2
90%
11.9
100%
13.2

Tech Specs

Type Value
Connection Size: 1 "
Connection Type: Female NPT
Body Style: Through Body
Body Material: Cast Ductile
NACE MR0175: Compliant
Trim Size: 1 "
Trim Type: Modified EP
Trim Material: Stainless Steel
Leakage Class: Class VI
Process Fluid: Liquid and Gas
Max Working Pressure: 175 psig
Actuator Spring Nominal Pressure: 40 psig
Fail Position: Closed
Operation: Pneumatic
Catalog Page: E2:90.3
Face-to-Face Length: 4.375 "
Min Cv: 1.8
Max Cv: 13.2
