AALD20S6HSN

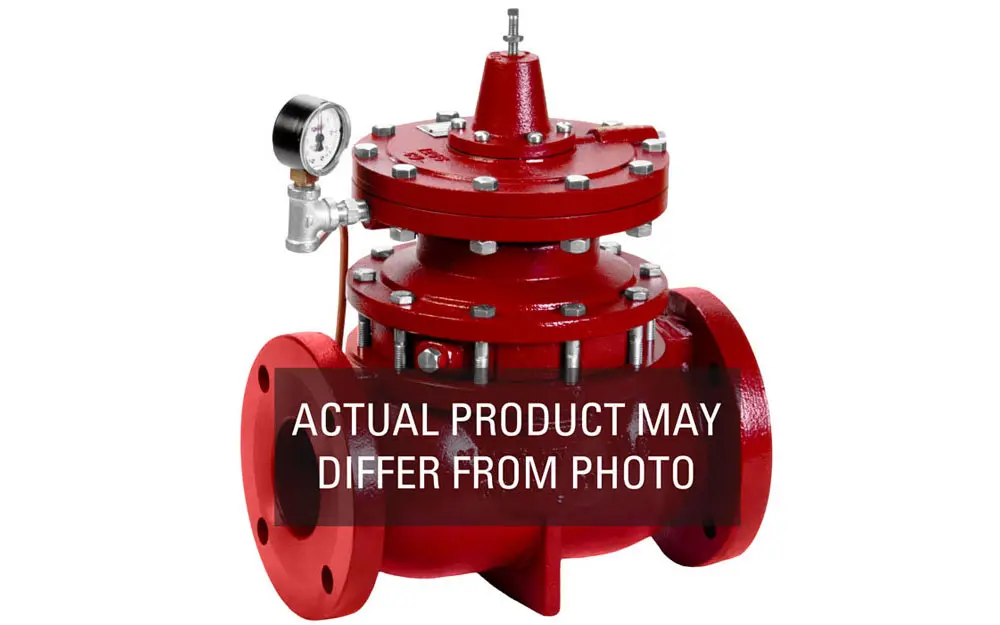

Low Pressure Back Pressure to Atmosphere Regulators control pressure upstream of your production vessel and feature lower set point options than the standard Back Pressure Regulator.
These regulators are set up to use an outside supply of pressure from air compressors in order to support producers' emissions goals.
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Need Service?
Our certified technicians work closely with our engineering and product design teams.
They have direct access to the most up-to-date product information.
Repairs & Maintenance
Browse our Accessories and our Repair Kits to keep your Kimray product in peak condition.
We recently consolidated our regulator repair kits. Please see the related product notice for a full cross-reference table.
- Repair Kit: RUFDHSN + Add to Quote
Product Charts
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 3 " |
| Connection Type: | Female NPT |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 3 " |
| Trim Material: | Stainless Steel |
| Process Fluid: | Liquid and Gas |
| Pilot Type: | Vent |
| Max Working Pressure: | 300 psig |
| Max Set Point Pressure: | 20 psig |
| Operation: | Pneumatic |
| Catalog Page: | 06:90.7 |
| Face-to-Face Length: | 12.06 " |
| Elastomer: | HSN |
| Min Cv: | 15.6 |
| Max Cv: | 117 |
