Oil and Water Interface: 2 Critical Adjustments for Accurate Liquid Level Control

Maintaining accurate oil and water interface is vital for proper separation in upstream oil and gas production.

In a 3-phase separator, liquid level controllers allow oil and water to fill or dump from the vessel as required for each fluid individually.

In this video Kyle shows you 2 adjustments you can make to your mechanical liquid level system to maintaining an accurate oil and water interface level.

How do you know if your interface level is accurate?

  • Float is too light. If your float is not weighted at all, it will float on top of the oil and will not control the interface level. If left this way, as more emulsion enters the vessel, the oil pad will increase to the point that it is being dumped out through the water dump valve.

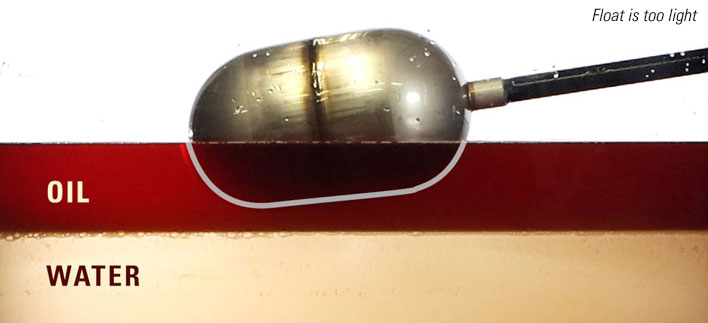

float too light


  • Float is too heavy. If your float is too heavy, it may not even sense the water level. The dump valve will not be able to open under these conditions. If your dump valve is never opening, this may be the case.

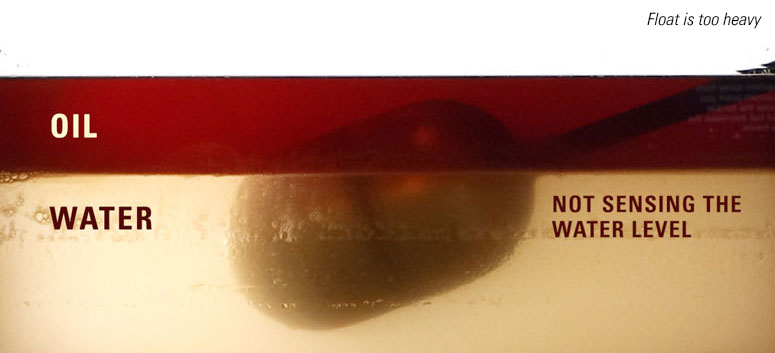

float too heavy


  • Properly weighted float. The float should be heavy enough for it to sink through the oil but buoyant enough to float on the water.

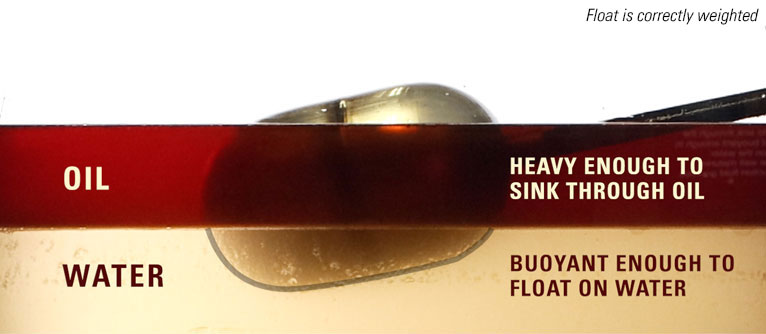

float correctly weighted


As your well matures, production fluid gravities will change, which will affect the buoyancy of the float.

You can see the interface level of your vessel in the sight glass and you can confirm it's operating as it should. It is important to regularly monitor this level so you can adjust the float or mechanical linkage as needed.

Below are the two adjustments you can make to correct this.


1. Re-weight the Float

To get the float to sink through the oil and operate in the oil-water interface you need to weight it properly.

Watch our step-by-step video to learn how.

how to weight a float

Without the float being weighted correctly, it will float on the lightest fluid, which is the oil, and not control the interface.


2. Adjust the Linkage Rod

The torque and travel for both the trunnion and dump valve lever arms are adjustable by changing the position of the linkage rod on the lever arms.

As you move the linkage rod towards the fulcrum point, you will increase the valve travel or how much the valve opens but it will also decrease the torque. When you move the linkage rod connection away from the fulcrum point, you increase the torque output but decrease the valve travel.

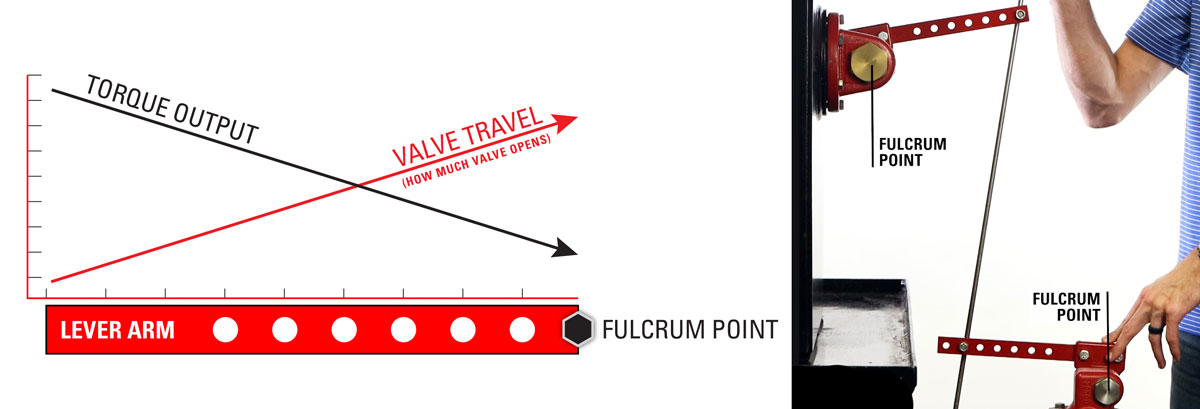

linkage rod torque vs valve travel

This is a give and take between the valve torque and travel. The higher the operating pressure is the, more torque the valve will require to open against that pressure.

The fluid rate will also determine if the valve needs to open further. If the valve is not able to evacuate the fluid fast enough, the valve travel will have to be increased.

A good starting position would be in the middle of each lever arm. From here you can make small adjustments to find what works best in your conditions.

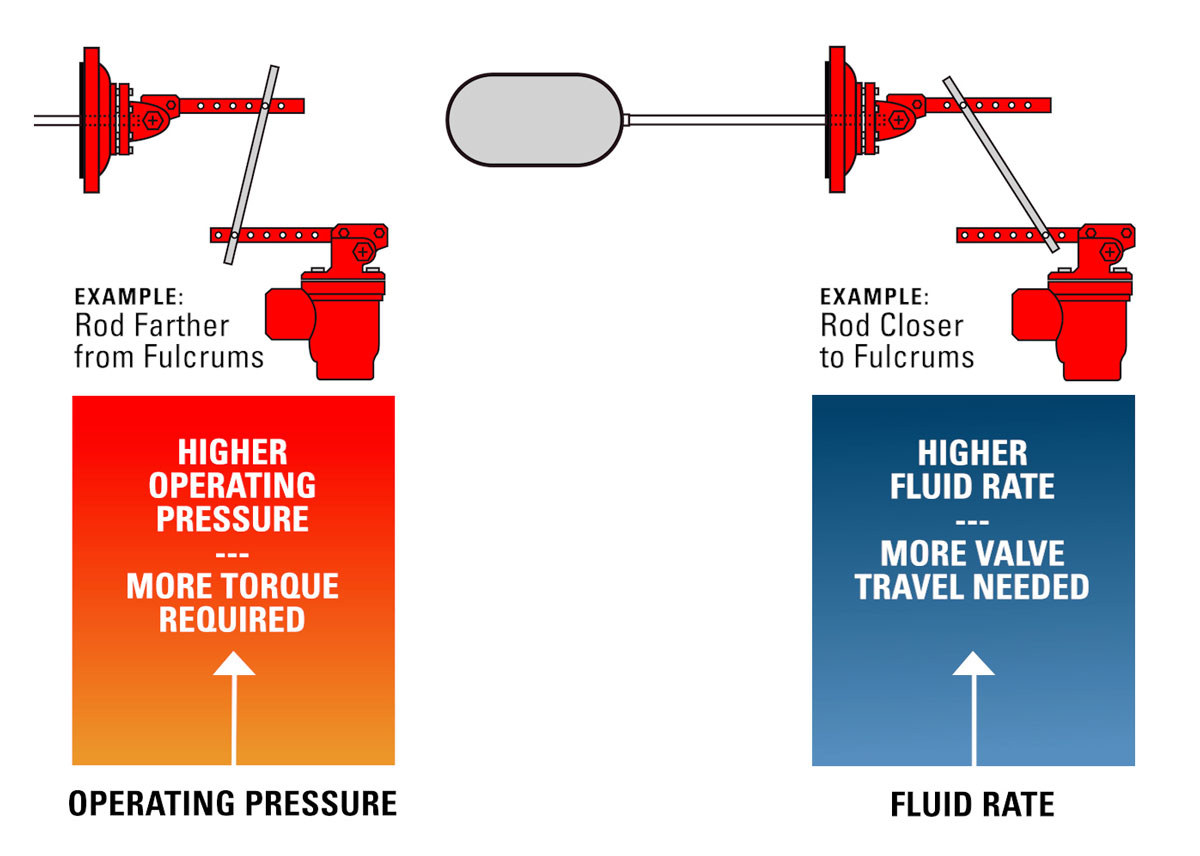

linkage rod torque vs valve travel


BONUS: new & Improved Trunnion Hub and Dump Valve

There are 3 new key features which maximize performance in products used for interface control.

There are now lever hub set screws in both the Trunnion assembly and Lever-Operated Liquid Dump Valve, which eliminates rotational play at those connections.

The trunnion assembly now has a threaded design on the float arm hub, which yields no rotational play at that connection to the shaft.

The trunnion hub and shaft designs have been updated in the lever-operated dump valve. A new shape, thicker hub cross-section, and tight-tolerance precision manufacturing has minimized rotational play in this connection to the least amount of any other solution.

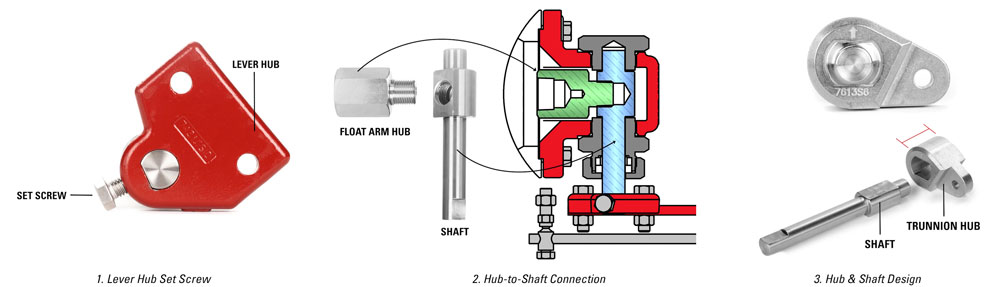

kimray lever hub trunnion dump valve design updates

For more information about trunnion hub and dump valve design improvements, watch our video on that topic.

To speak with an expert about liquid level control, contact your local Kimray store or authorized distributor.
