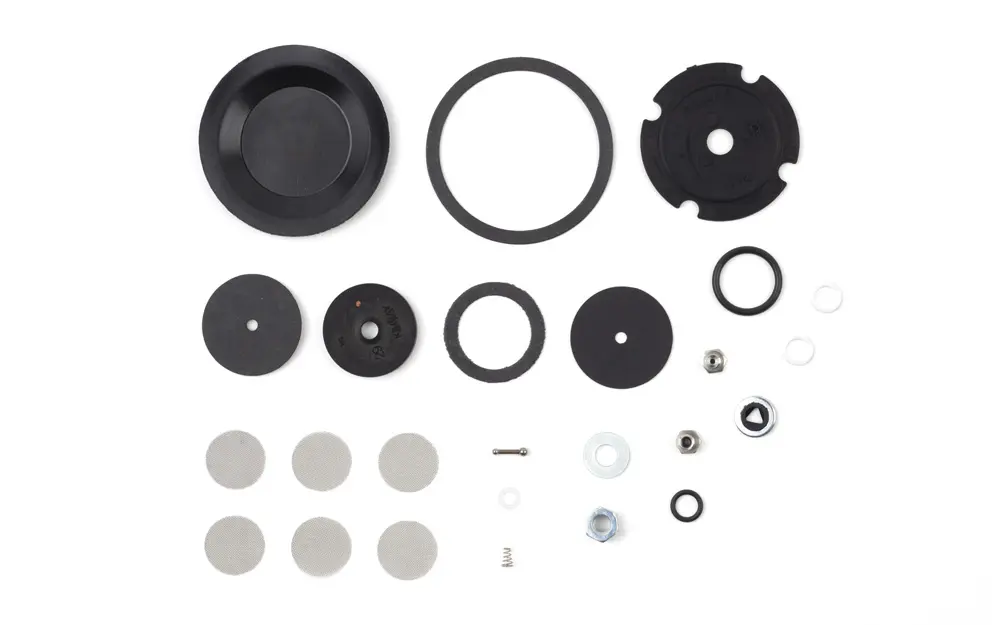

Product Image
Kit Sheet
Parts, Kits & Tools/Kits/Repair Kits/

RYD

Description:
1IN-D MASTER REPAIR KIT

Build & Save a Quote

We'll get you options, pricing, and anything else you need.

Check Availability
Where to Buy
Helpful Face

Anything we can do to help?

Talk to a specialist at (405) 525-4298 or fill out a quick product message form.

Products Compatible with RYD

Product Code Product Description

RYD Parts List

Part # Description QTY
127 DIAPH 1 MT BUNA-N 1
148T BACK UP TEFLON 1 2
153 O-RING BUNA-N 2-011 1
155 O-RING BUNA-N 2-116 1
163HSN SEAT 1 MT HSN 1
172 NUT UNI 1/4-28 GRC ZP 1
195 BODY GASKET 112 SMT 1
3008 SPRING 1 BP 1
3011P DIAPH 1 SGT BP POLY 1
3014 DIAPH 1 SGT BP BUNA-N 2
3015 PILOT SEAT 1/8 1 IN BP 1
3016 PILOT SEAT 3/32 1 IN BP 1
3017 PILOT PLUG 1/8 X 3/32 1 BP 1
3018 GASKET 1 BP 1
4542 1/4 STL ZN W BUNA-N THREDSEAL 1
4543 WAS SAE1/4 STL ZP 1
4554 GASKET 1 PRB 1
619 FILTER SCREEN 1/4 12F 53/64DIA 6

Downloads & Updates

Documents
RYD Kit Sheets (835kb)
