This product notice is to inform you that the Low Pressure High Volume Valve is now available in 3” Reduced Port.
This means all sizes are now available:
- 2" full (Cv 54)
- 2" reduced (Cv 29)
- 3" full (Cv 109)
- 3" reduced (Cv 72)
This includes both angled body and thru body, with threaded connections and 150RF flanged connections for ALL sizes!

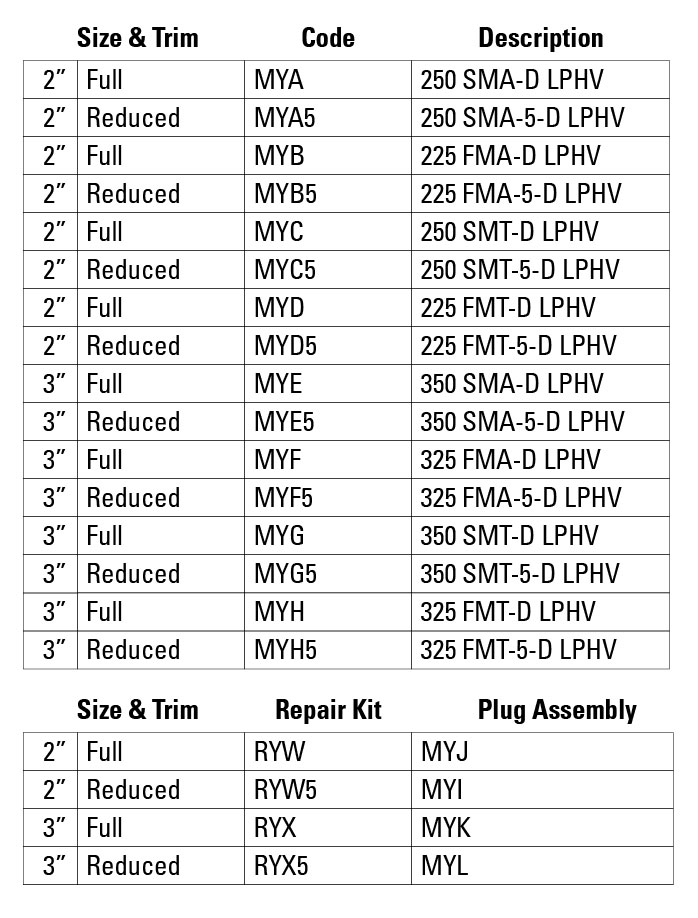

In the charts below you will find the Valve, Repair Kit, and Plug Assembly codes to order.
Elastomers are HSN standard, with optional Viton (add V to the end of the code).
All sizes have 3 trim options: Standard Trim, D2 hardened steel trim steel trim for erosive conditions (add D2 to the end of the code), or 316 Stainless Steel trim for corrosive environments (add S6 to the end of the code).
All LPHV valves come standard in Fail Closed configuration, and are field reversible. You can order any of these configured Fail Open (add PC to code).
Check out the Field Study we recently published about how the LPHV valve could be a great benefit to your wellsite.
